Identifying Hagon springs - how? - SV650.org

24-05-12, 07:05 PM

I bought some hagon springs off ebay last week, they were lightly used so I picked them up cheap.

Fitted them tonight and the front end feels just as soft as it did before oncompression. The springs look identical to the ones I took out.

How can I tell the difference between standard injection springs and hagons? I would have thought the wire gauge would have been different?

maviczap · 24-05-12, 07:22 PM

No, they should start with wide spacings at one end, which taper into tighter coils

Like this

Standard ones only have a small section of tight coils if I remember correctly?

Did you change the fork oil at the same time?

maviczap · 24-05-12, 07:26 PM

Standard curvy ones

24-05-12, 07:34 PM

Thanks for the quick reply, this is for an injection Sv.

They're slightly a progressive spring but no where as tightly wound as the pic you posted. The springs I removed (presumed they were std) aren't like your curvy ones either they're slightly progressive as well. I'll put a picture up tomorrow but if anyone can confirm what the pointy model springs are like that would be great.... I see an eBay dispute coming on

yorkie_chris · 24-05-12, 08:27 PM

Stock pointy ones are progressive a bit. Post a pic of them?

muzikill · 24-05-12, 08:49 PM

My front fork rebuild has them pictured

Sent from my GT-I9100 using Tapatalk 2

24-05-12, 10:21 PM

Just looked at your thread and yes the ones I removed looked like that,

I will take a picture of both sets tomorrow.

Would someone be able to confirm what the pointy Hagons are like? I expect they're similar to the ones already pictured in this thread (very tight coils over several inches).

Looks like I got shafted... and that will be why the auction didnt show the springs just the box!

25-05-12, 07:15 PM

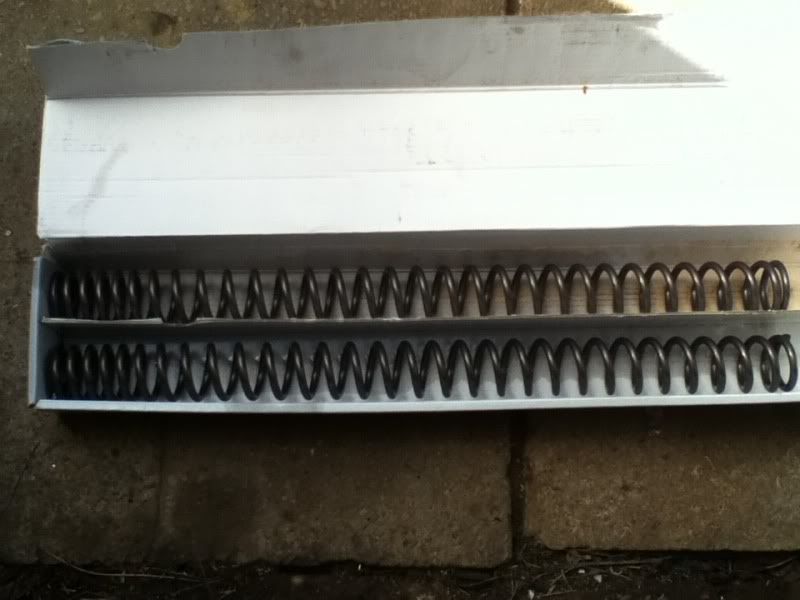

Here are the pictures of the springs, as you can see the progressiveness of the coils are only very slight when compared to the first pic of this thread.

25-05-12, 10:14 PM

I have just bought some Hagon springs off JoshWalker and they look very similar to the ones you have. There are only about 6 tight coils. I haven't taken my standard ones out yet so I can't comment on the similarity.
Are there any identifying marks we should be looking for??

muzikill · 26-05-12, 07:42 AM

Those look like the stock pointy sv springs the original hagons that were in those boxes replaced btw.

Ebay item listing links?

24-05-12, 07:05 PM	#1
britaxcooper Guest Posts: n/a	Identifying Hagon springs - how? I bought some hagon springs off ebay last week, they were lightly used so I picked them up cheap. Fitted them tonight and the front end feels just as soft as it did before oncompression. The springs look identical to the ones I took out. How can I tell the difference between standard injection springs and hagons? I would have thought the wire gauge would have been different?

24-05-12, 07:22 PM	#2
maviczap Member Mega Poster Join Date: Mar 2007 Posts: 9,097	Re: Identifying Hagon springs - how? No, they should start with wide spacings at one end, which taper into tighter coils Like this Standard ones only have a small section of tight coils if I remember correctly? Did you change the fork oil at the same time? __________________ We're riding out tonight to case the promised land Make everyday count RIP Reeder - Jolly Green Giant and comedy genius Last edited by maviczap; 24-05-12 at 07:24 PM.

24-05-12, 07:26 PM	#3
maviczap Member Mega Poster Join Date: Mar 2007 Posts: 9,097	Re: Identifying Hagon springs - how? Standard curvy ones __________________ We're riding out tonight to case the promised land Make everyday count RIP Reeder - Jolly Green Giant and comedy genius

24-05-12, 07:34 PM	#4
britaxcooper Guest Posts: n/a	Re: Identifying Hagon springs - how? Thanks for the quick reply, this is for an injection Sv. They're slightly a progressive spring but no where as tightly wound as the pic you posted. The springs I removed (presumed they were std) aren't like your curvy ones either they're slightly progressive as well. I'll put a picture up tomorrow but if anyone can confirm what the pointy model springs are like that would be great.... I see an eBay dispute coming on

24-05-12, 08:27 PM	#5
yorkie_chris Noisy Git Mega Poster Join Date: Apr 2007 Location: Halifax/Leeds Posts: 26,645	Re: Identifying Hagon springs - how? Stock pointy ones are progressive a bit. Post a pic of them? __________________ Currently Ex Biker Now rebuilding a 63' fishing trawler as a dive boat

24-05-12, 08:49 PM	#6
muzikill Member Mega Poster Join Date: Jul 2005 Location: Dunfermline Posts: 1,712	My front fork rebuild has them pictured Sent from my GT-I9100 using Tapatalk 2 __________________ Learn to maintain your bike, take it apart, rebuild the engine & more (using better bolts ), drop it & fix it again! K3 Job c.v: Engine:remove/split/rebuild/refit. Replace:Gearbox,Fuel pump,Gaskets. Piston clean,rings. Overhaul:Throttle body,Injectors,Brakes,Forks. Remove/refit:Exhaust,Radiator,Oil cooler,Throttle,Air filter,Tank. Replace: Oil,Coolant,grease,brake hoses & bleed.

24-05-12, 10:21 PM	#7
britaxcooper Guest Posts: n/a	Re: Identifying Hagon springs - how? Just looked at your thread and yes the ones I removed looked like that, I will take a picture of both sets tomorrow. Would someone be able to confirm what the pointy Hagons are like? I expect they're similar to the ones already pictured in this thread (very tight coils over several inches). Looks like I got shafted... and that will be why the auction didnt show the springs just the box!

25-05-12, 07:15 PM	#8
britaxcooper Guest Posts: n/a	Re: Identifying Hagon springs - how? Here are the pictures of the springs, as you can see the progressiveness of the coils are only very slight when compared to the first pic of this thread.

25-05-12, 10:14 PM	#9
FG1 Guest Posts: n/a	Re: Identifying Hagon springs - how? I have just bought some Hagon springs off JoshWalker and they look very similar to the ones you have. There are only about 6 tight coils. I haven't taken my standard ones out yet so I can't comment on the similarity. Are there any identifying marks we should be looking for??

26-05-12, 07:42 AM	#10
muzikill Member Mega Poster Join Date: Jul 2005 Location: Dunfermline Posts: 1,712	Those look like the stock pointy sv springs the original hagons that were in those boxes replaced btw. Ebay item listing links? __________________ Learn to maintain your bike, take it apart, rebuild the engine & more (using better bolts ), drop it & fix it again! K3 Job c.v: Engine:remove/split/rebuild/refit. Replace:Gearbox,Fuel pump,Gaskets. Piston clean,rings. Overhaul:Throttle body,Injectors,Brakes,Forks. Remove/refit:Exhaust,Radiator,Oil cooler,Throttle,Air filter,Tank. Replace: Oil,Coolant,grease,brake hoses & bleed. Last edited by muzikill; 26-05-12 at 07:46 AM.
