Fork oil drain screw?
Does anyone no if the SV folks have a drain screw so i can let the oil drain out
__________________
Was SV650S K9 Now GSXR 600 K9 |
|
|
|
12-08-10, 01:00 PM
|
#2 |
|
No, I don't lend tools.
Mega Poster
Join Date: Jul 2003
Location: Skunk Works, Nth London
Posts: 8,680
|
Re: Fork oil drain screw?
No.
__________________
If an SV650 has a flat tyre in the forest and no-one is there to blow it up, how long will it be 'til someone posts that the reg/rec is duff and the world will end unless a CBR unit is fitted? A little bit of knowledge = a dangerous thing. "a deathless anthem of nuclear-strength romantic angst" Last edited by Sid Squid; 12-08-10 at 01:01 PM. |
|
|
|
|
12-08-10, 01:09 PM
|
#3 |
|
Guest
Posts: n/a
|
Re: Fork oil drain screw?
nope, the bolt on the bottom is for the damper rod, you have to remove the forks to drain them.
remove forks remove top cap remove spacer and washer remove spring (oil will come out with the spring so make sure you have a covered area to work on) turn forks up side down compress the fork leg over and over again then compress and leave up side down for all the oil to drain some people then wash them out, i didn't party because i didn't know what to use |
|
|
|
12-08-10, 01:21 PM
|
#4 |
|
Member
Join Date: Jul 2009
Location: Guildford, surrey
Posts: 785
|
Re: Fork oil drain screw?
Dam thats a shames coz i dont have a stand at all the hold the bike up
__________________
Was SV650S K9 Now GSXR 600 K9 |
|
|
|
|
12-08-10, 01:24 PM
|
#5 |
|
Guest
Posts: n/a
|
Re: Fork oil drain screw?
means ur gna have to borrow one, buy one or have a garage do it
|
|
|
|
12-08-10, 01:25 PM
|
#6 |
|
Guest
Posts: n/a
|
Re: Fork oil drain screw?
Its really not hard to do. if i can do it anyone can
|
|
|
|
12-08-10, 01:25 PM
|
#7 |
|
Guest
Posts: n/a
|
Re: Fork oil drain screw?

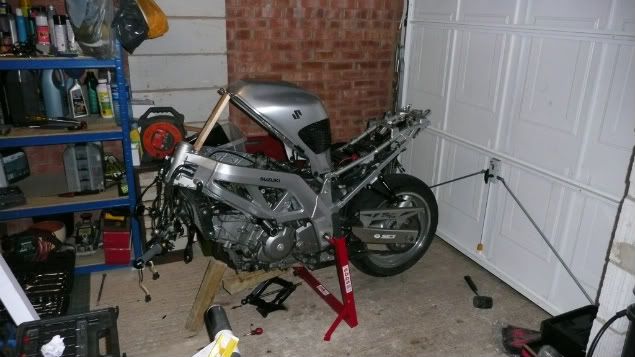

you'd need somthing like an abba stand then a jack just behind the oil filter
mine stayed like this for a good 2 month's
|
|
|
|
12-08-10, 01:34 PM
|
#8 | |
|
Guest
Posts: n/a
|
Re: Fork oil drain screw?
Quote:
|
|
|
|
|
12-08-10, 01:35 PM
|
#9 |
|
Guest
Posts: n/a
|
Re: Fork oil drain screw?
Do recommend the abba stand though.
|
|
|
|
12-08-10, 01:39 PM
|
#10 | |
|
Guest
Posts: n/a
|
Re: Fork oil drain screw?
Quote:
|
|
|
|
|
|
|
