Photos of K9 Sport stripe please.

Right, finally managed to get some measurements and better photographs - although they were taken on the phone! I've only got the stripe widths, as you can easily get the lengths yourself, and I didn't have a long enough bender ruler. (oo eerrr!)

The side stripes are consistantly 9mm wide, and set 18mm off of the main stripe to each side. I measured 17mm, but for ease I reckon it should be just double the side stripe width.

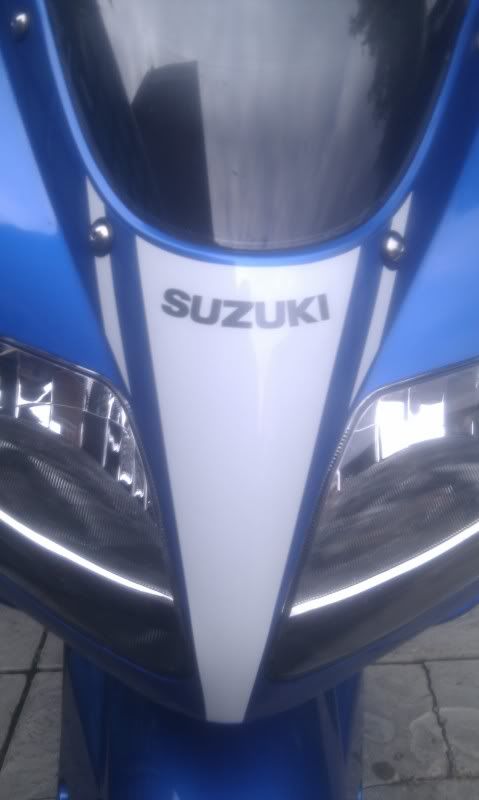

Front nose cone



main stripe: 16mm at bottom; 95mm at top.

Tank

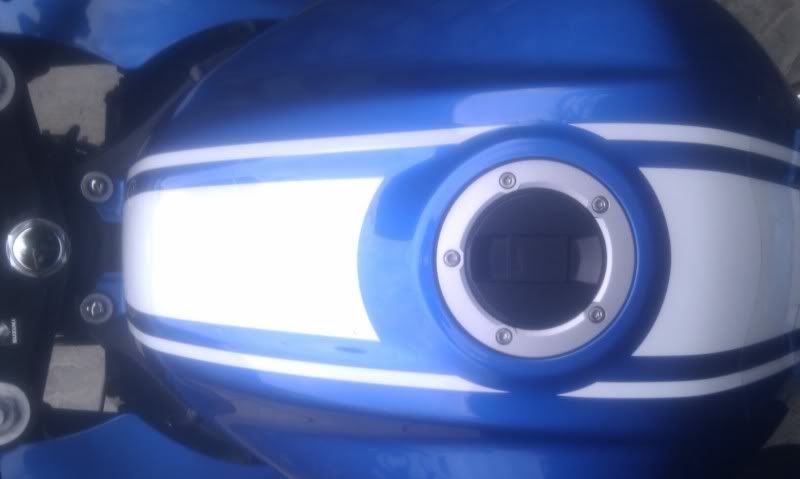

main stripe, in front of filler cap: 62mm at front; 92 at rear (next to filler cap).

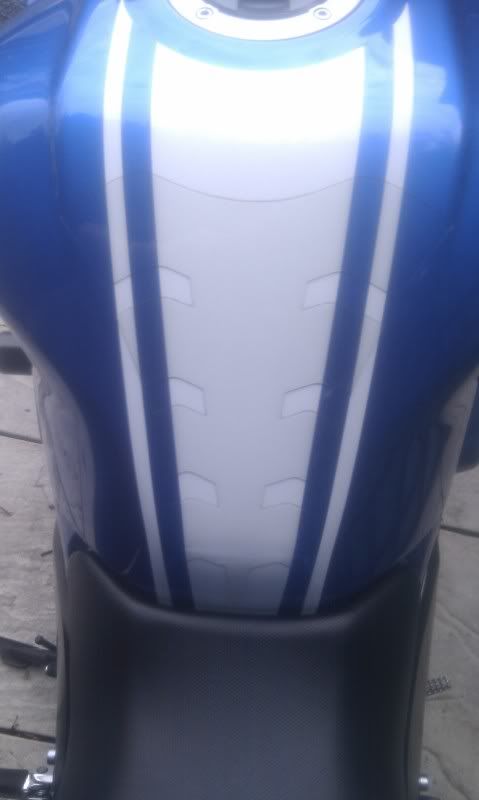

main stripe, behind filler cap: 102mm at front (next to filler cap); 49 at rear (near testicles).

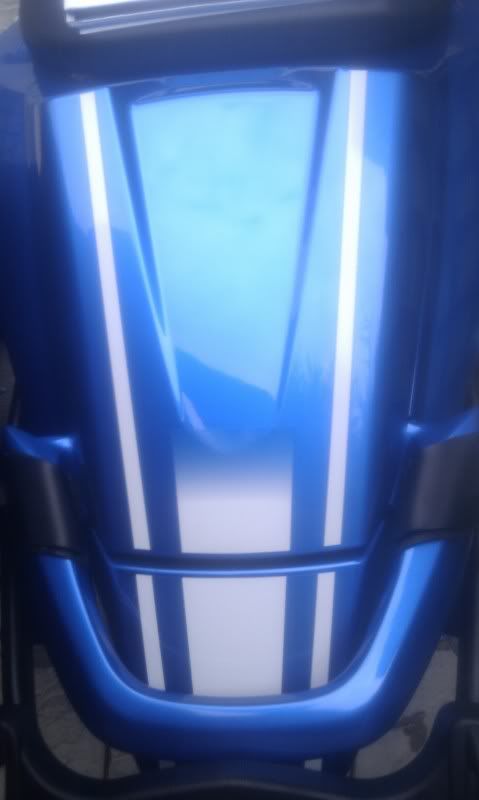

Cowl / Rear



main stripe on cowl at front (faded bit) 68mm; rear bit on the cowl: 60mm.
main stripe on rear at front: 56mm; rear bit (covered by my rack in the pic): 40mm.

I know I've done quite a poor job at this, but hope it helps a little bit at least.

[SIII]

Fantastic job, thanks a lot, TazDaz.
I am seeing the company and am going to get a price to get these made up. Will let interested parties know as and when I can get these cut!
Might struggle to get the fade on the rear seat cowel tho'.

I have the same model bike as you in black also. I am definately interested in getting some of these for my bike. Let me know when you get a price and I will order some also. It may even help bring the price down.

Might be an idea to get the decal producer to log onto this site and show him the this post. He doesn't have to be a member. It amazing how much gets lost in translation when trying to explain something like this.

If you're adding them post-factory then you might as well get something original done, seeing as you're going through all that effort anyway.

Yeah, but I like the factory look,

Hi where could I get the stripe kit but in black cheers.

Front nose cone



main stripe: 16mm at bottom; 95mm at top.

Tank





main stripe, in front of filler cap: 62mm at front; 92 at rear (next to filler cap).
main stripe, behind filler cap: 102mm at front (next to filler cap); 49 at rear (near testicles).

Cowl / Rear



main stripe on cowl at front (faded bit) 68mm; rear bit on the cowl: 60mm.
main stripe on rear at front: 56mm; rear bit (covered by my rack in the pic): 40mm.

I know I've done quite a poor job at this, but hope it helps a little bit at least. [/QUOTE]
