SV chain oiler

[embee]

OK, so I got bored and started playing.

I fitted a Scottoiler some years ago with the feed onto the side of the g/box sprocket, and while the oil did find its way across it was always wetter ones side than the other.

So I made up this gizmo to suply the oil to both sides, and strategically to the rollers and O-rings directly.

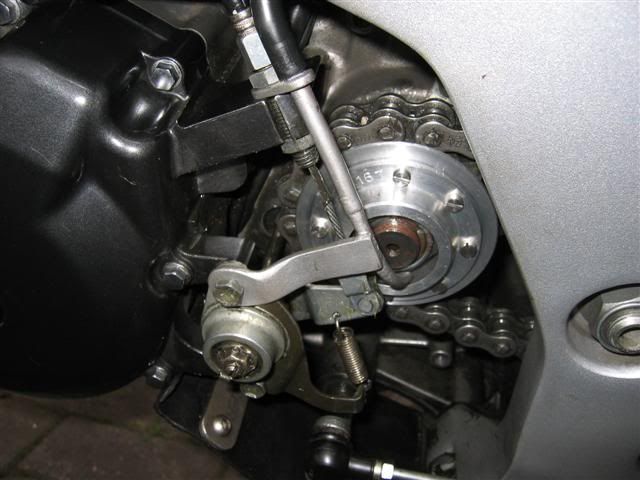

The feed is from the Scottoiler, using the normal black capillary pipe to regulate the drips, but it passes down a bent steel tube directing it into the "collector".

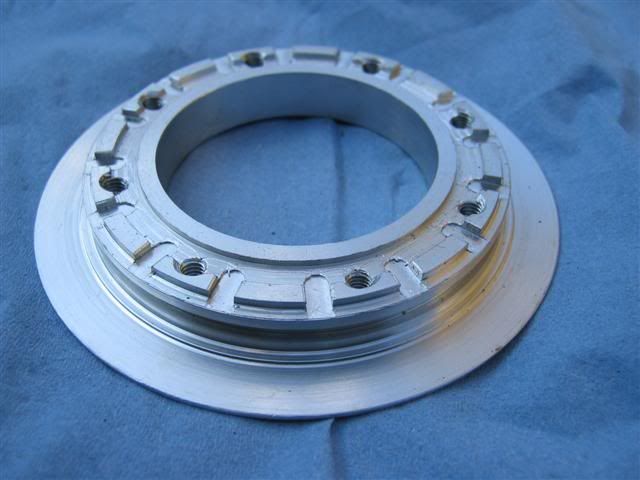

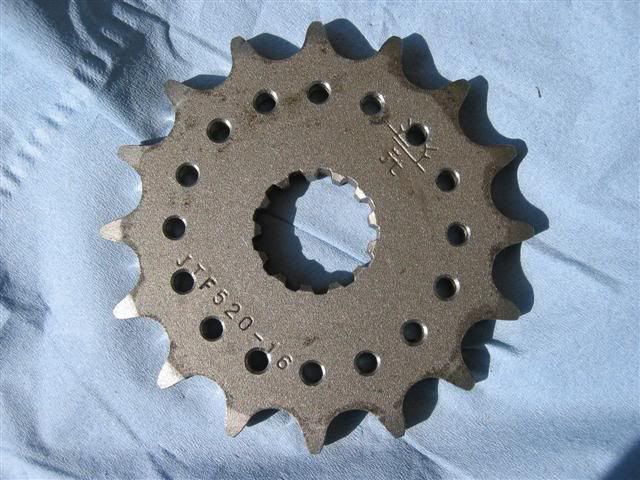

The oil is centrifuged down the cone to the sprocket, where it goes into radial slots. Half of them go straight to the roller positions on the outboard side, one per roller, the other half stop short and match up with holes drilled through the sprocket. The sprocket is case hardened but HSS drill bits seem to go through it OK. It is a 16T, and although it is stamped 520 it is actually a 525.





These then feed a groove with another set of slots feeding the inboard side. There is a rib round the circumference which lines up with the O-rings, so in theory some oil goes onto the sprocket/roller and some goes onto the O-ring between the sideplates. The side flanges might help keep the oil directed to the chain, keeping the wind off it a bit (maybe, that's the thought anyways).





All very OTT, but it keeps me off the streets. It seems to work well, the flow can be turned right down because the oil gets delivered right to where it's needed so keeps the fling to a minimum. I think if I counted my time it would cost more than the bike is worth!

Just food for thought.
