01-05-09, 04:52 PM

Hi there, Im fitting a stebel nautilus horn and cant find where the horn relay goes? Also does anyone have a good idea as to where to fit the horn as its quite big?

Thanks,

James

maviczap · 01-05-09, 05:01 PM

http://forums.sv650.org/showthread.php?t=119690

here's one forum post. you need to wire the relay direct to the battery and use the horn switch across the relay to activate it.

01-05-09, 05:29 PM

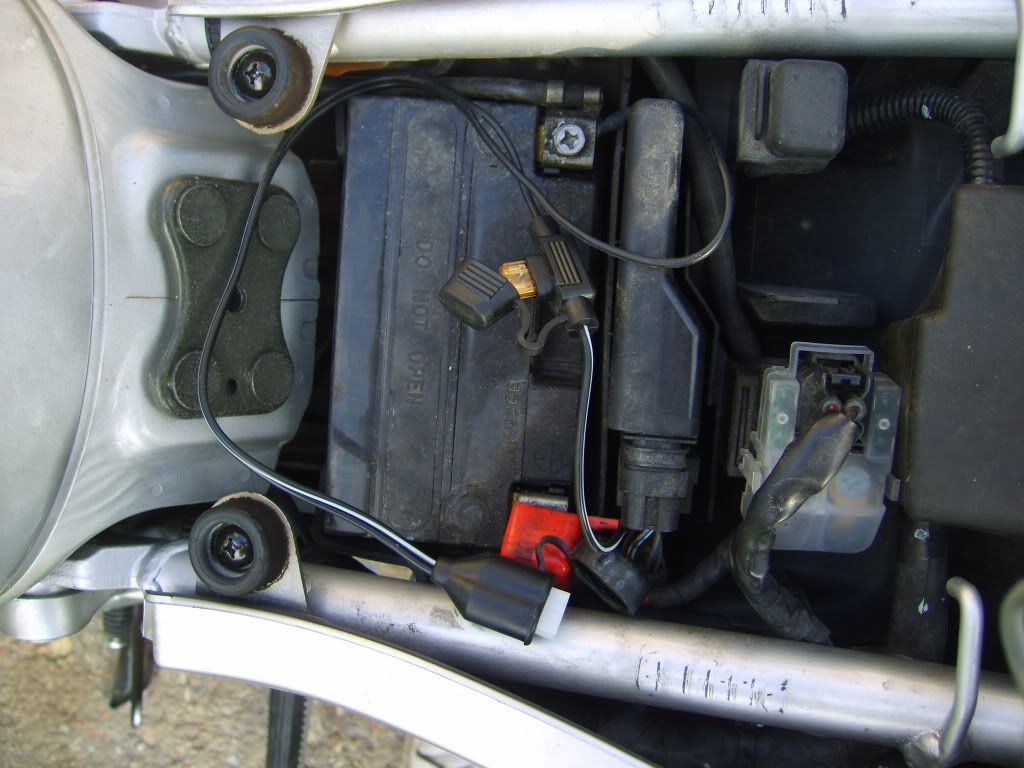

I found this attached to my battery, is it for optimate? has a 5 amp inline fuse so i could butcher that connecter bit off the end and use it for the horn? ( i dont have an optimate)

01-05-09, 05:40 PM

I put the horn in my bellypan and the relay down beside the airbox. The compressor is in front of the airbox!

maviczap · 01-05-09, 06:07 PM

Yep, that'll be ideal. get some insulated spade ends to make the connection to the relay.

Maplins should have them.

I fed a wire off my stebl to the fairing backet for the earth.

01-05-09, 07:03 PM

Just a thought... The Stebel will kill that 5A fuse. Your horn won't work for long if you use a 5A fuse.

I think the stebel is rated at 20A, but double check this.

maviczap · 01-05-09, 07:06 PM

Quote:

Originally Posted by Baph

Just a thought... The Stebel will kill that 5A fuse. Your horn won't work for long if you use a 5A fuse.

I think the stebel is rated at 20A, but double check this.

+1 Mine ate the 5A straight away, but I replaced it with a 7.5A and that's still fine

01-05-09, 07:13 PM

Right ok thanks alot. Quick question: would the alarm be ok under the seat? as in would you be able to hear it as well? fits nicely under there with a little bracket that as if by magic is in a perfect position. Also is it ok to have the unit laying on its side (horn outlets facing downwards or towards the sky? as i think i saw something about it having to be upright or 15% out?

maviczap · 01-05-09, 07:18 PM

Dunno, as I haven't got an alarm. But if it fits, then why not

01-05-09, 07:31 PM

Alarm?

01-05-09, 04:52 PM	#1
James SV Guest Posts: n/a	Horn Relay Hi there, Im fitting a stebel nautilus horn and cant find where the horn relay goes? Also does anyone have a good idea as to where to fit the horn as its quite big? Thanks, James

01-05-09, 05:01 PM	#2
maviczap Member Mega Poster Join Date: Mar 2007 Posts: 9,097	Re: Horn Relay http://forums.sv650.org/showthread.php?t=119690 here's one forum post. you need to wire the relay direct to the battery and use the horn switch across the relay to activate it. __________________ We're riding out tonight to case the promised land Make everyday count RIP Reeder - Jolly Green Giant and comedy genius

01-05-09, 05:29 PM	#3
James SV Guest Posts: n/a	Re: Horn Relay I found this attached to my battery, is it for optimate? has a 5 amp inline fuse so i could butcher that connecter bit off the end and use it for the horn? ( i dont have an optimate)

01-05-09, 05:40 PM	#4
svdemon Guest Posts: n/a	Re: Horn Relay I put the horn in my bellypan and the relay down beside the airbox. The compressor is in front of the airbox!

01-05-09, 06:07 PM	#5
maviczap Member Mega Poster Join Date: Mar 2007 Posts: 9,097	Re: Horn Relay Yep, that'll be ideal. get some insulated spade ends to make the connection to the relay. Maplins should have them. I fed a wire off my stebl to the fairing backet for the earth. __________________ We're riding out tonight to case the promised land Make everyday count RIP Reeder - Jolly Green Giant and comedy genius

01-05-09, 07:03 PM	#6
Baph Guest Posts: n/a	Re: Horn Relay Just a thought... The Stebel will kill that 5A fuse. Your horn won't work for long if you use a 5A fuse. I think the stebel is rated at 20A, but double check this.

01-05-09, 07:13 PM	#8
James SV Guest Posts: n/a	Re: Horn Relay Right ok thanks alot. Quick question: would the alarm be ok under the seat? as in would you be able to hear it as well? fits nicely under there with a little bracket that as if by magic is in a perfect position. Also is it ok to have the unit laying on its side (horn outlets facing downwards or towards the sky? as i think i saw something about it having to be upright or 15% out?

01-05-09, 07:18 PM	#9
maviczap Member Mega Poster Join Date: Mar 2007 Posts: 9,097	Re: Horn Relay Dunno, as I haven't got an alarm. But if it fits, then why not __________________ We're riding out tonight to case the promised land Make everyday count RIP Reeder - Jolly Green Giant and comedy genius

01-05-09, 07:31 PM	#10
James SV Guest Posts: n/a	Re: Horn Relay Alarm?
