Default Bit of fun - wiring problem

OK - so, fitted my Gixer rear shock on Saturday, all good. Test ride yesterday, all good. Went to use the horn (Stebel Nautilus) today, all bad

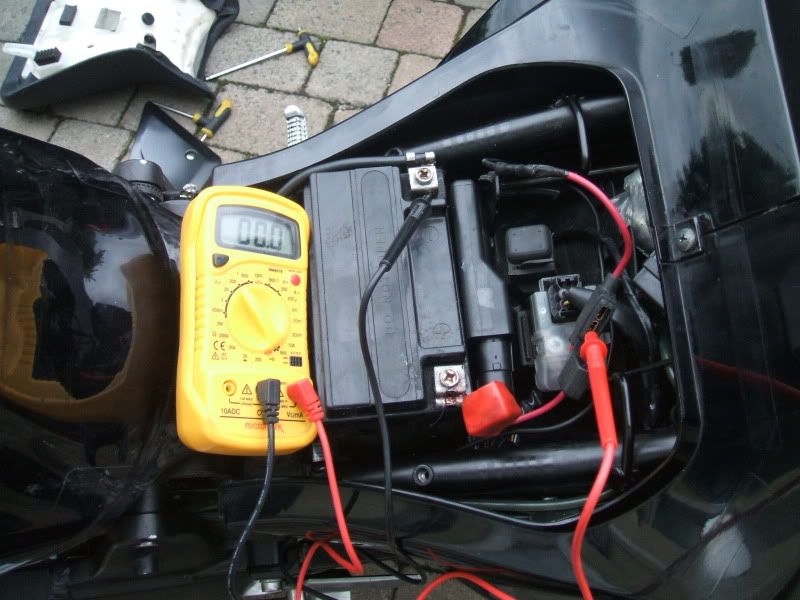

So...for all you wiring guru's out there...what's the problem? I couldn't get a reading at the horn or relay with the meter, so put it on the battery side of the fuse holder...still no reading (ignition on, horn button pressed).

Answers in here please (I know the problem and will reveal it shortly)

Nobbylad is offline   Reply With Quote
Old 14-06-10, 09:17 PM   #2
DarrenSV650S
Member
Mega Poster

DarrenSV650S's Avatar

Join Date: Jul 2006
Location: Dundee
Posts: 4,414
Default Re: Bit of fun - wiring problem

First of all, what setting have you got that meter on?
DarrenSV650S is offline   Reply With Quote
Old 14-06-10, 09:28 PM   #3
phi-dan
Member

phi-dan's Avatar

Join Date: Apr 2009
Location: going up Camborne hill coming down
Posts: 251
Default Re: Bit of fun - wiring problem

Ignition/horn on or off shouldn't matter as those probes look they're measuring across the terminals of the battery (effectively), but as Darren hinted at, 'twould be better to have the gauge set to 20V DC instead of 200

Failing that, from memory the horn switch runs to earth so could be +ve cuurent applied to both poles of the relay??



taking for granted the biggest problem, i.e. it's a pointy
__________________
Was: Red curvy S: crash bungs, double bubble screen, fenda extenda, HEL front lines, OEM belly pan
Now: Blue FZ6 Fazer
phi-dan is offline   Reply With Quote
Old 14-06-10, 09:28 PM   #4
thefallenangel
Guest

Posts: n/a
Default Re: Bit of fun - wiring problem

duff battery, wrong set meter, not pushed plugs all the way into meter?
  Reply With Quote
Old 15-06-10, 06:41 AM   #5
Nobbylad
Member
Mega Poster

Nobbylad's Avatar

Join Date: Jun 2008
Location: West Lancs
Posts: 4,055
Default Re: Bit of fun - wiring problem

In my sheer stupidness....when I re-connected the battery....I forgot there was an additional connector wired in for the horn feed, which was hidden under the rubber terminal cover....DOH!

Nobbylad is offline   Reply With Quote
Old 15-06-10, 08:00 AM   #6
phi-dan
Member

phi-dan's Avatar

Join Date: Apr 2009
Location: going up Camborne hill coming down
Posts: 251
Default Re: Bit of fun - wiring problem

hehehe, may have done that myself at some point as well!
