18-09-11, 03:13 PM

So this is the state of my regulator rectifier...

I replaced the stock one with one from a GS500 when it died.

My battery went flat, I didn't notice until it broke down again.

Charged the battery, refitted it.

The bike started up straight away and smoke started pouring from the tail unit.

Opened her up to find this sorry state of affairs...

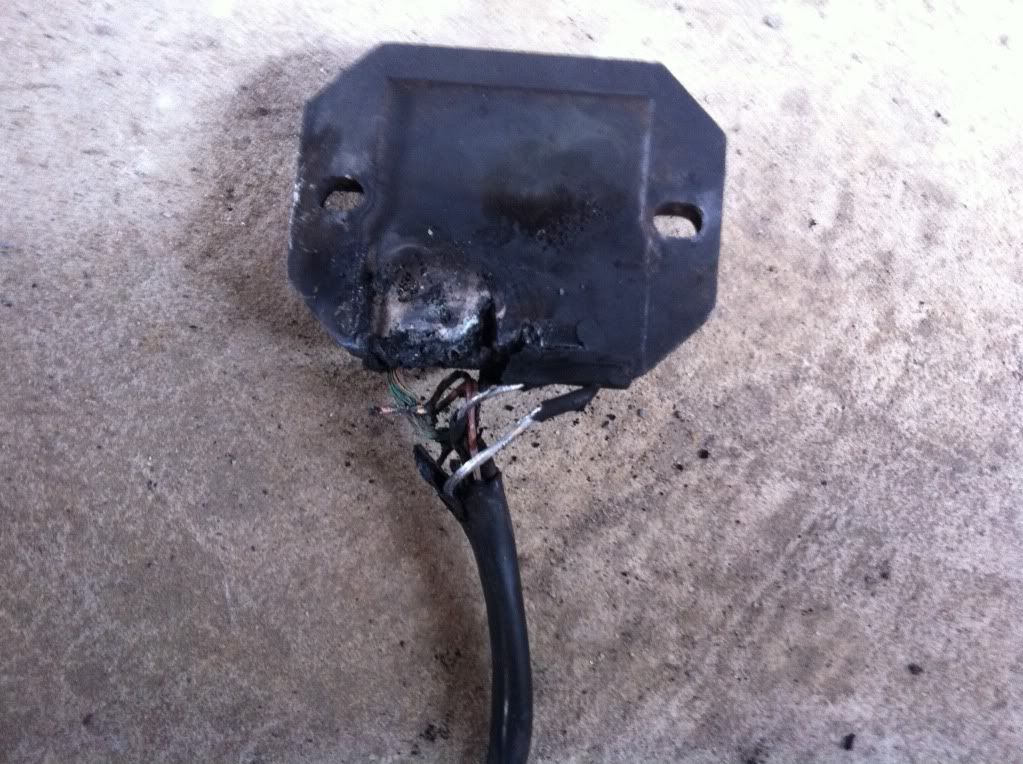

Regulator Rectifier

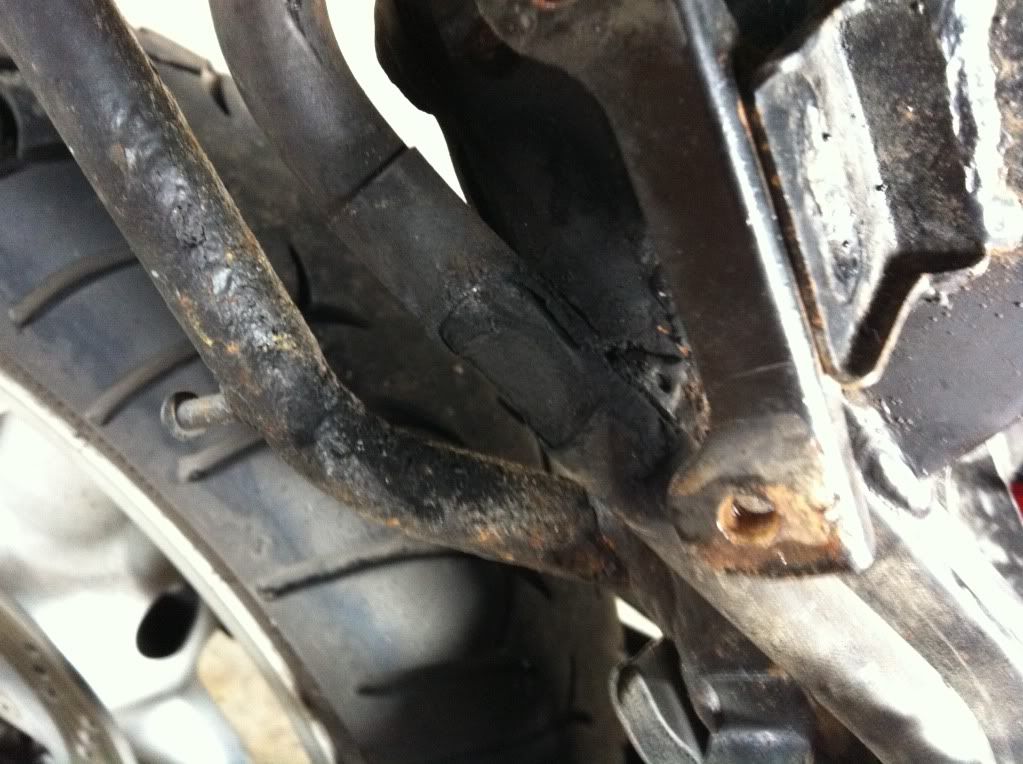

Damage to location of Reg/Rec

I think I will need a new hose to the rear brake fluid reservoir too...

Geodude · 18-09-11, 06:05 PM

Thats not good, looks like it couldn't handle the power/heat.

Dave20046 · 18-09-11, 06:29 PM

think it might have been running a bit hot

18-09-11, 07:05 PM

Dear Bike, please try and set fire to my ****.

The bike starts with no reg/rec fitted. What else will it affect?

Geodude · 18-09-11, 07:08 PM

Battery/electrics, charging system dont know what else.

18-09-11, 07:10 PM

Lights and indicators all work. The dial light doesn't though. I'm not sure what else will be broken?

I cant replace the reg until the end of the month so I may have to just keep journeys short and keep trickle charging the battery.

rictus01 · 18-09-11, 07:17 PM

Hmmmm off the top of my head I think the GS alternator is rated at 200-225 @5000 rpm, and the SV at 250-275, something like that, that is of course if it was wired up correctly

, so that might be the cause, try and find one over rated rather than under next time would be my advice.

Cheers Mark.

Geodude · 18-09-11, 07:17 PM

I think running the bike without the regulator may overload the circuits and melt your wiring etc could even start a wire fire.

timwilky · 19-09-11, 08:39 AM

Quote:

Originally Posted by Geodude

I think running the bike without the regulator may overload the circuits and melt your wiring etc could even start a wire fire.

How, without the RR fitted, there is no load on the alternator. Other systems continue to draw their rated loads from the battery that will discharge quicker.

mikerj · 19-09-11, 11:40 AM

Quote:

Originally Posted by Geodude

I think running the bike without the regulator may overload the circuits and melt your wiring etc could even start a wire fire.

I think not.

The worst that could happen is insulation breakdown within stator windings as the open circuit voltage will be pretty high at high RPM. It won't cause a fire though and it's pretty unlikely.
