Default Fork seal leak help?

hi
iv changed the fork oil in both forks , iv now noticed on one of my forks slight oil on the inner fork , the shiny top bit of the fork , there isn't a lot and its not running down onto the bottom fork , iv used new seals I cant see any bend in the fork or damage but that's not to say its not , should I be looking at getting the fork replaced or will I be ok ? iv changed the seal three times with new seals now and still have the same problem, the forks were clean when I put new oil and seals in it so don't think its down to that ,
thanks for any help
  Reply With Quote
Old 15-03-13, 07:06 PM   #2
aesmith
Member

Join Date: Mar 2013
Location: Aberdeenshire
Posts: 966
Default Re: fork help

Quote:
Originally Posted by craig dow View Post
hi
iv changed the fork oil in both forks , iv now noticed on one of my forks slight oil on the inner fork , the shiny top bit of the fork , there isn't a lot and its not running down onto the bottom fork , iv used new seals I cant see any bend in the fork or damage but that's not to say its not , should I be looking at getting the fork replaced or will I be ok ? iv changed the seal three times with new seals now and still have the same problem, the forks were clean when I put new oil and seals in it so don't think its down to that ,
thanks for any help
Not familiar with the SV forks (yet) but if the bearings are worn then the seals won't last. On my last bike that made a difference, even the condition of the lower bearings had an effect.
aesmith is offline   Reply With Quote
Old 15-03-13, 07:21 PM   #3
craig dow
Guest

Posts: n/a
Default Re: fork help

but sure that would affect both forks not just one side , only guessing as im not sure myself
  Reply With Quote
Old 15-03-13, 07:30 PM   #4
aesmith
Member

Join Date: Mar 2013
Location: Aberdeenshire
Posts: 966
Default Re: fork help

Quote:
Originally Posted by craig dow View Post
but sure that would affect both forks not just one side , only guessing as im not sure myself
I was referring to the bearings inside each fork, the bearings that allow the inner part to slide inside the lower part. I'd need to see an exploded diagram, but I'd expect to see a replaceable bearing or bushing at the top just below the oil seal, and one at the bottom of the inner tube.
aesmith is offline   Reply With Quote
Old 15-03-13, 11:51 PM   #5
craig dow
Guest

Posts: n/a
Default Re: fork help

not on the sv forks , if there is I don't have any in mine ,
  Reply With Quote
Old 16-03-13, 12:22 AM   #6
Runako
Guest

Posts: n/a
Default Re: fork help

Quote:
Originally Posted by craig dow View Post
not on the sv forks , if there is I don't have any in mine ,
Its not something you can see from the outside. But it might not be called a bearing. If I'm thinking about the same thing as aesmith, its an internal ring or bushing which may be worn or damaged.

You would have to get the upper and lower completely apart to check this visually. If its cracked or worn, the stanchion may not get a good seal or might be rocking around in the lowers. The seals themselves may not be the problem.

Does the ride feel any different at the moment?

Last edited by Runako; 16-03-13 at 12:24 AM.
  Reply With Quote
Old 16-03-13, 07:28 AM   #7
aesmith
Member

Join Date: Mar 2013
Location: Aberdeenshire
Posts: 966
Default Re: fork help

Yes. Bush is probably the term, not bearing.
aesmith is offline   Reply With Quote
Old 16-03-13, 09:43 AM   #8
MorganH91
Guest

Posts: n/a
Default Re: fork help

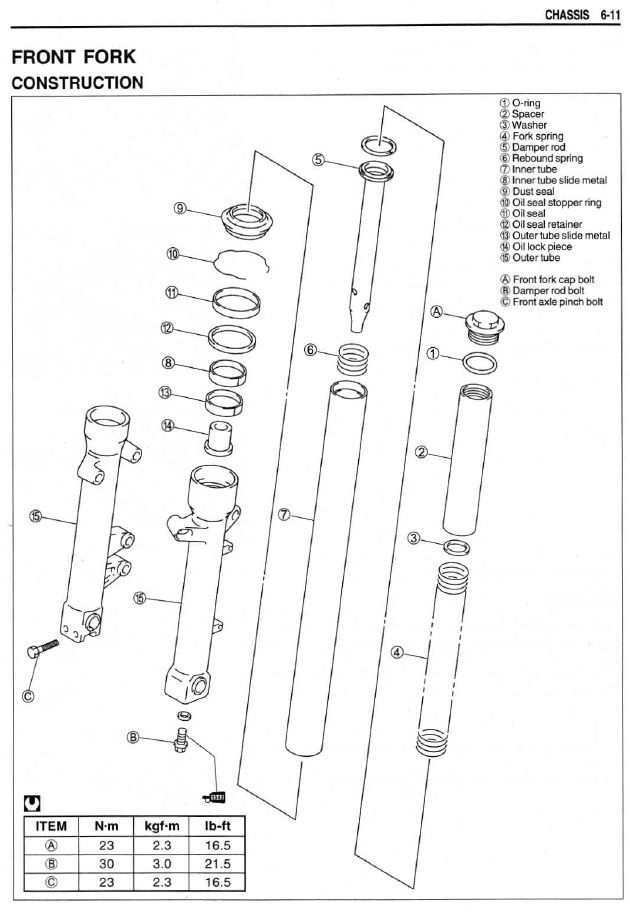

Hope this helps; is it items 8 and 13 here you're referring to?

  Reply With Quote
Old 16-03-13, 11:05 AM   #9
craig dow
Guest

Posts: n/a
Default Re: fork help

ok thanks , will get a look at them , but as I said its just a very small smear of oil one the top fork part , so its not a big problem at the mow , thanks for your help
  Reply With Quote
Old 16-03-13, 11:10 AM   #10
aesmith
Member

Join Date: Mar 2013
Location: Aberdeenshire
Posts: 966
Default Re: fork help

Quote:
Originally Posted by craig dow View Post
ok thanks , will get a look at them , but as I said its just a very small smear of oil one the top fork part , so its not a big problem at the mow , thanks for your help
Sounds like it just needs a good wipe now and again, like before MOT. If it gets worse and you're replacing the seals, you can check those parts for wear while you're at it.
aesmith is offline   Reply With Quote
