Toe guard and swingarm/fork crash bobbins - SV650.org

26-06-06, 04:29 PM

I'm thinking of getting a toe guard and some fork and swingarm bobbins for the beast

Any pics, advice and testimonials greatly appreciated

26-06-06, 04:34 PM

Chewys stuff???

northwind · 26-06-06, 04:36 PM

The R&G toe guard needs holes drilled in the swingarm to fit right- which I didn't fancy. So I glued it on, just for the look of it

Probably not much use at all. Then it fell off (but to be fair, I broke it off and maybe didn't stick it back on well)

Fork bobbins, I use R&G, they're big and fit well. Swingarm, I also have R&G, but the Motosliders ones are wider and work better with a paddock stand.

TSM · 26-06-06, 04:39 PM

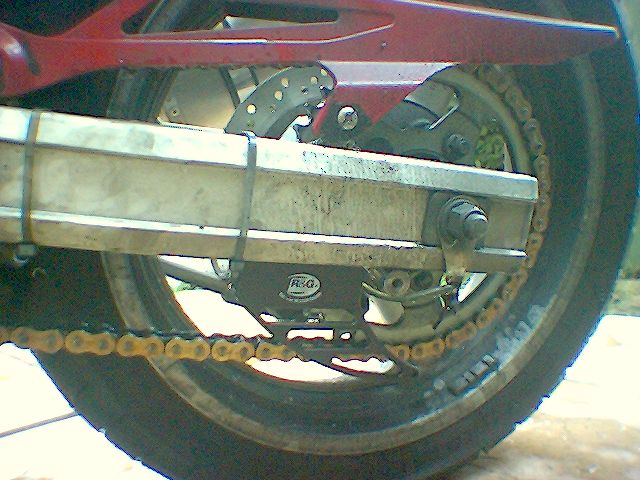

I have the R&G Toe guard fitted, I drill holes and tapped them properly to fit, it has taken a wack when the swing arm nearly touched down, but its still fully intact.
I also have some bog standard swingarm bobins which saved most of the swing arm in my last crash (not shown in photo).

northwind · 26-06-06, 06:10 PM

See, I wouldn't want holes in my swingarm there- that's an expansion stress point as well. It'd probably be absolutely fine but I don't like probably.

TSM · 26-06-06, 06:13 PM

Quote:

Originally Posted by northwind

See, I wouldn't want holes in my swingarm there- that's an expansion stress point as well. It'd probably be absolutely fine but I don't like probably.

They are only 6mm holes, and not just screwed in using self tapping screws that i herd one person doing which would be way worse than proper tapped holes. Anyway its not cracked yet that i can see and with my track record something else will brake in the meantime.

northwind · 26-06-06, 06:27 PM

Yep, that's why I reckon it'd probably be fine. But any hole is a stress point, so for something that'll probably never benefit me I decided against it. I'm not going to pronounce you doomed though

26-06-06, 10:19 PM

I'm sorry but the Snotoiler and toe guard really dont go together

TSM · 26-06-06, 10:29 PM

Quote:

Originally Posted by Robw#70

I'm sorry but the Snotoiler and toe guard really dont go together

Looks tidier now as i routed the pipe diffrently along with swingarm bobins, i still have to get rid of the zip ties though.
