Side panels below seat (curvy) - what fasteners? - SV650.org

01-10-09, 10:20 PM

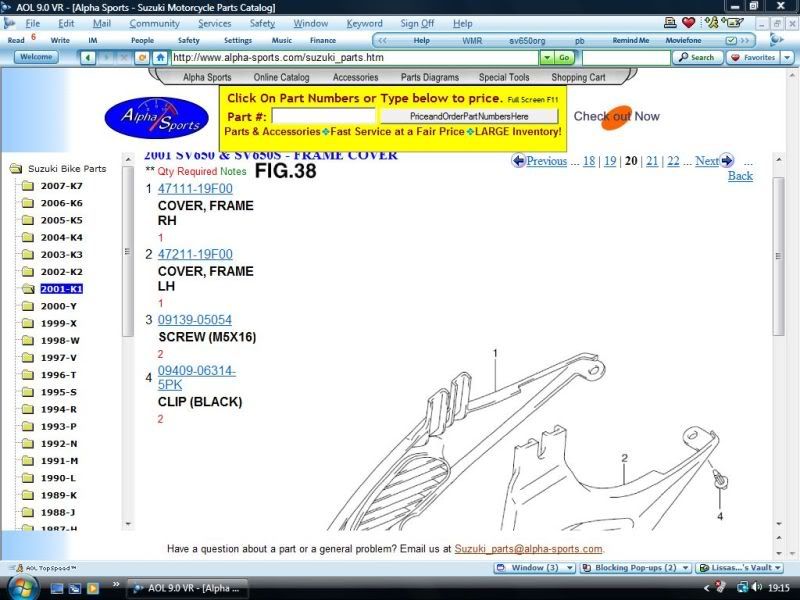

My curvy SV650S was missing the black plastic panels that are fitted either side under the seat. I've bought a secondhand pair but now I need the bits to fit them! According to the Haynes manual they're each attached with a screw and a trim clip. Does anyone know the part numbers of these, or the sizes if they're standard items?

Thanks!

dizzyblonde · 01-10-09, 10:32 PM

they are secured by a dome headed shouldered bolt. Same ones that are in your nose cone and fairings.
Don't necessarily need to bother with the trim clip, and they is a pain in the butt!

03-10-09, 07:32 AM

Beware, the bolts (3) are shouldered to stop you cracking the plastic so not any old bolt will do and the plastic clips are about a quid each! I never lost one in my years of ownership, but Dizzy is right, they are not really neccessary

03-10-09, 07:55 PM

That's great guys, thanks!

maviczap · 03-10-09, 08:00 PM

If you need a pair if trim pins drop me a PM with your address. I have a couple

05-10-09, 11:00 PM

Thanks! PM sent.

01-10-09, 10:20 PM	#1
SVforvictory Guest Posts: n/a	Side panels below seat (curvy) - what fasteners? My curvy SV650S was missing the black plastic panels that are fitted either side under the seat. I've bought a secondhand pair but now I need the bits to fit them! According to the Haynes manual they're each attached with a screw and a trim clip. Does anyone know the part numbers of these, or the sizes if they're standard items? Thanks!

01-10-09, 10:32 PM	#2
dizzyblonde Da Cake Boss Mega Poster Join Date: May 2007 Location: On a flying Horse Posts: 9,992	Re: Side panels below seat (curvy) - what fasteners? they are secured by a dome headed shouldered bolt. Same ones that are in your nose cone and fairings. Don't necessarily need to bother with the trim clip, and they is a pain in the butt! __________________ Suzy, yellow 2001 SVS. Kitty, V-Raptor 1000, ZZR1400<<its my bike now Pegasus! Hovis 13.8.75-3.10.09 Reeder 20.7.88-21.3.12

03-10-09, 07:32 AM	#3
petevtwin650 Guest Posts: n/a	Re: Side panels below seat (curvy) - what fasteners? Beware, the bolts (3) are shouldered to stop you cracking the plastic so not any old bolt will do and the plastic clips are about a quid each! I never lost one in my years of ownership, but Dizzy is right, they are not really neccessary

03-10-09, 07:55 PM	#4
SVforvictory Guest Posts: n/a	Re: Side panels below seat (curvy) - what fasteners? That's great guys, thanks!

03-10-09, 08:00 PM	#5
maviczap Member Mega Poster Join Date: Mar 2007 Posts: 9,097	Re: Side panels below seat (curvy) - what fasteners? If you need a pair if trim pins drop me a PM with your address. I have a couple __________________ We're riding out tonight to case the promised land Make everyday count RIP Reeder - Jolly Green Giant and comedy genius

05-10-09, 11:00 PM	#6
SVforvictory Guest Posts: n/a	Re: Side panels below seat (curvy) - what fasteners? Thanks! PM sent.
