Old 01-11-15, 09:18 PM   #41
tojo82
Guest

Posts: n/a
Default Re: Clutch cable adjustmentioned help?!?

Right so unscrewing the screw allows the arm to be moved. I will get on that tomorrow then.
  Reply With Quote
Old 01-11-15, 09:20 PM   #42
millemille
Member

Join Date: May 2012
Posts: 318
Default Re: Clutch cable adjustmentioned help?!?

yes, wind the screw adjuster out so you are absolutely certain it isn't in contact with the clutch push rod.

Then set the arm angle.

Then wind the screw adjuster in until it goes solid and then back it off slightly and do up the lock nut.
millemille is offline   Reply With Quote
Old 01-11-15, 09:21 PM   #43
tojo82
Guest

Posts: n/a
Default Re: Clutch cable adjustmentioned help?!?

Okay so that may be where I've been messing up. I've been trying to move the arm lower as you wrote but couldn't. Obviously everytime I went to do that the screw was wound in.
  Reply With Quote
Old 02-11-15, 05:13 PM   #44
tojo82
Guest

Posts: n/a
Default Re: Clutch cable adjustmentioned help?!?

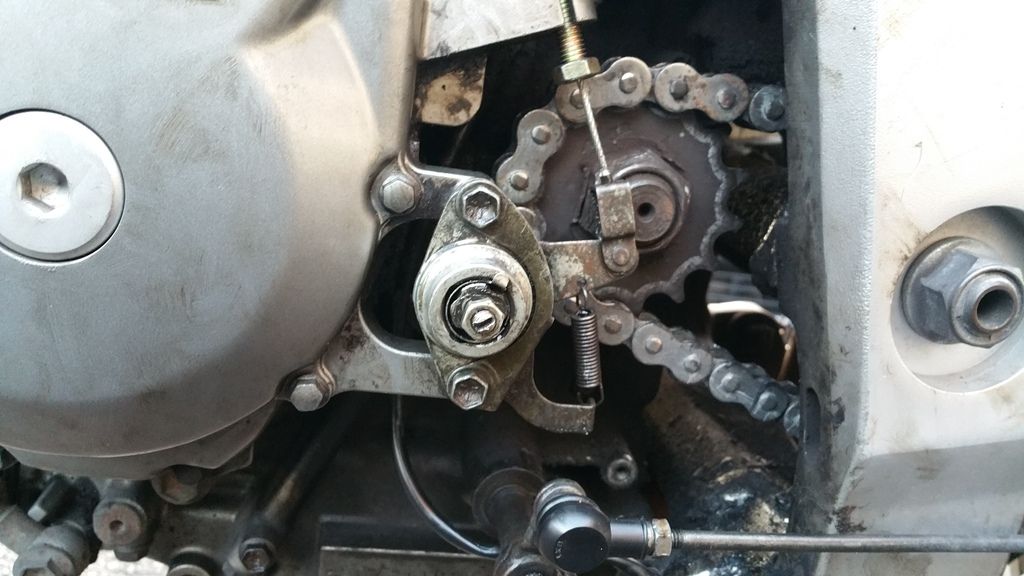

Right millemille I've spent time on it doing everything you stated. I've taken out the rod and cleaned and greased it. I've cleaned the worm and greased it, unscrewed the screw entirely and greased that. I loosened everything and trying lowering the arm. I've then tightened the screw until it stopped then wound it back 1/8th a turn. (In the past this is the step that I did different as in the past I screw it until I saw the arm move then back it off 1/8th.) Is this right now? I will have to go for a ride tomorrow and hope it doesn't slip in the higher gears.
  Reply With Quote
Old 02-11-15, 05:29 PM   #45
millemille
Member

Join Date: May 2012
Posts: 318
Default Re: Clutch cable adjustmentioned help?!?

Looks ok to me, other than you need to do up the lock nuts on the clutch cable!

If the clutch is still slipping it's not because of the actuator....
millemille is offline   Reply With Quote
Old 02-11-15, 05:39 PM   #46
tojo82
Guest

Posts: n/a
Default Re: Clutch cable adjustmentioned help?!?

I have done up the lock nuts. I think it is in the same position as the start but my initial camera angle made it look off. Just to confirm to turn the screw till it stops then back off 1/8th? Thank you for persevering with me also.
  Reply With Quote
Old 02-11-15, 06:35 PM   #47
millemille
Member

Join Date: May 2012
Posts: 318
Default Re: Clutch cable adjustmentioned help?!?

The adjuster lock nut on the clutch cable is clearly NOT done up in the photo.....
millemille is offline   Reply With Quote
Old 02-11-15, 06:40 PM   #48
tojo82
Guest

Posts: n/a
Default Re: Clutch cable adjustmentioned help?!?

Sorry yes I am aware of that I just took the photo before I did it up.
  Reply With Quote
Old 02-11-15, 09:22 PM   #49
johnnyrod
Member
Mega Poster

johnnyrod's Avatar

Join Date: Jul 2003
Location: Doncaster, oop norf
Posts: 2,128
Default Re: Clutch cable adjustmentioned help?!?

All sounds good. I would only do up the locknut at the handlebar end finger tight while you are trying it out so it's easy to adjust - I took the rubber boot off mine though and I also find that I need to do up the locknut with pliers it shakes loose. You'll need to adjust the cable from one or both ends (doesn't matter which) to get the biting point in a comfortable place.
johnnyrod is offline   Reply With Quote
Old 07-11-15, 05:12 PM   #50
millemille
Member

Join Date: May 2012
Posts: 318
Default Re: Clutch cable adjustmentioned help?!?

And?
millemille is offline   Reply With Quote
