Pointy Link Pipe Dimensions anyone? - SV650.org

Spikenipple · 03-06-08, 09:56 PM

Sup all!
Seeing as I can't find a link pipe ANYWHERE for my Remus can, i'm gonna get one made up at the local steel fabricators.

Would anyone be so kind as to post up the dimensions of their link pipe?
I need:
ID of the header end
Length til the bend
What the angle of the bend is
Length after the bend

And the ID of my can is obviously going to be the ED of the can end of the link pipe.

Any help shall be much appreciated!
I'll even send you a mars bar in the post

Cheers all
Mike

Mr_Chin · 04-06-08, 06:38 AM

Give Beowulf a try. I think they do them for about a tenner posted.

Chin

Spikenipple · 04-06-08, 09:17 AM

Thanks for that, i've just ordered one from them. Turns out they have the same dimensions at the can end as my can so that's a bonus!
Cost me £35 quid though, but that's better than £50 for a Fuel one which i'd have to sleeve up at the can end anyway.

Thanks

Spikenipple · 05-06-08, 12:42 PM

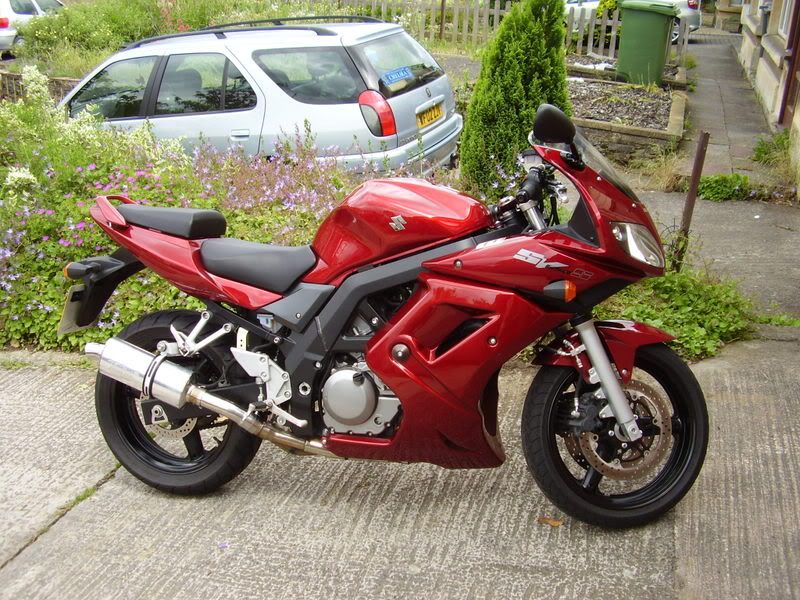

Well this is a bit nicer I think

I might actually be able to clean the r/h side of my swingarm now without being a contortionist!
