Throttle Cable help - SV650.org

hindle8907 · 28-12-11, 09:50 AM

part of the throttle cable assembly snapped a while ago when I threw my bike into the scenery.
It has been ok does stick now and again and feels tight but it was rideable, today on the way to work the throttle was sticking quite bad and upon inspection looks like the cable is ready to snap.
I have looked on wemoto at some replacement cables but I get the feeling I wont get the part that has snapped and will get the same issue happening.

http://www.wemoto.com/bikes/Suzuki/S..._Cable_B_Push/

http://www.wemoto.com/bikes/Suzuki/S..._Cable_A_Pull/

Any help will be much appreciated.

Cheers
Ant .

maviczap · 28-12-11, 10:07 AM

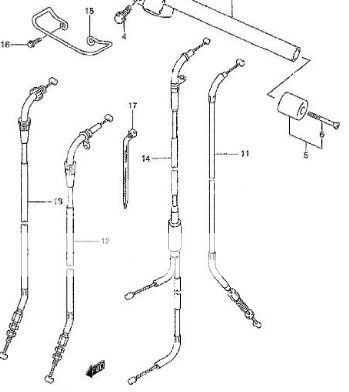

Its part of the cable assembly on the parts fiche, Wemoto are probably using a generic photo

http://www.alpha-sports.com/suzuki_parts.htm

If in doubt get the genuine cable from here

http://www.robinsonsfoundry.co.uk/

hindle8907 · 28-12-11, 10:12 AM

Cheers Mav,
Quite a big price difference especially if I need to replace both cables.
I presume its better to replace both cables at the same time both the Pull and Push ?

maviczap · 28-12-11, 10:19 AM

Not strictly necessary to replace both IMHO

hindle8907 · 28-12-11, 10:34 AM

Cheers, I take it the one I need is the Pull being number 13

maviczap · 28-12-11, 10:37 AM

Think so

Buy both just to be sure

Viney · 28-12-11, 11:31 AM

If im honest, and i cant work it out from that photo; there are 2 cables, one that pulls, one that 'pushes' if its the push cable, remove it alltogether. I have only had a single cable on my SV for 8 years or so.(70+k miles)

The 2 cables are easy to identify. The pull cable has a little tab on it(To screw it to the bars)(12 in the fische), the push doesnt.

The push cable is only there to satisfy the german TUV standards. If the throttle sticks open, hit the kill switch.

hindle8907 · 28-12-11, 01:46 PM

Cheers Viney,
I have ordered the corect one as you say the pull cable has a tab on it.

28-12-11, 09:50 AM	#1
hindle8907 Member Mega Poster Join Date: May 2009 Location: Manchester Posts: 1,492	Throttle Cable help part of the throttle cable assembly snapped a while ago when I threw my bike into the scenery. It has been ok does stick now and again and feels tight but it was rideable, today on the way to work the throttle was sticking quite bad and upon inspection looks like the cable is ready to snap. I have looked on wemoto at some replacement cables but I get the feeling I wont get the part that has snapped and will get the same issue happening. http://www.wemoto.com/bikes/Suzuki/S..._Cable_B_Push/ http://www.wemoto.com/bikes/Suzuki/S..._Cable_A_Pull/ Any help will be much appreciated. Cheers Ant . __________________ 2006-2007 -- Gilera Runner 50 - Sold 2007-2008 -- Hyosung XRX125 - Stolen 2009-2010 -- 05 SV650n - CAT - B 2010-Now -- 00 SV650s & 00 SV650n & GSXR 600 K2

28-12-11, 10:07 AM	#2
maviczap Member Mega Poster Join Date: Mar 2007 Posts: 9,097	Re: Throttle Cable help Its part of the cable assembly on the parts fiche, Wemoto are probably using a generic photo http://www.alpha-sports.com/suzuki_parts.htm If in doubt get the genuine cable from here http://www.robinsonsfoundry.co.uk/ __________________ We're riding out tonight to case the promised land Make everyday count RIP Reeder - Jolly Green Giant and comedy genius

28-12-11, 10:12 AM	#3
hindle8907 Member Mega Poster Join Date: May 2009 Location: Manchester Posts: 1,492	Re: Throttle Cable help Cheers Mav, Quite a big price difference especially if I need to replace both cables. I presume its better to replace both cables at the same time both the Pull and Push ? __________________ 2006-2007 -- Gilera Runner 50 - Sold 2007-2008 -- Hyosung XRX125 - Stolen 2009-2010 -- 05 SV650n - CAT - B 2010-Now -- 00 SV650s & 00 SV650n & GSXR 600 K2 Last edited by hindle8907; 28-12-11 at 10:55 AM.

28-12-11, 10:19 AM	#4
maviczap Member Mega Poster Join Date: Mar 2007 Posts: 9,097	Re: Throttle Cable help Not strictly necessary to replace both IMHO __________________ We're riding out tonight to case the promised land Make everyday count RIP Reeder - Jolly Green Giant and comedy genius

28-12-11, 10:34 AM	#5
hindle8907 Member Mega Poster Join Date: May 2009 Location: Manchester Posts: 1,492	Re: Throttle Cable help Cheers, I take it the one I need is the Pull being number 13 __________________ 2006-2007 -- Gilera Runner 50 - Sold 2007-2008 -- Hyosung XRX125 - Stolen 2009-2010 -- 05 SV650n - CAT - B 2010-Now -- 00 SV650s & 00 SV650n & GSXR 600 K2

28-12-11, 10:37 AM	#6
maviczap Member Mega Poster Join Date: Mar 2007 Posts: 9,097	Re: Throttle Cable help Think so Buy both just to be sure __________________ We're riding out tonight to case the promised land Make everyday count RIP Reeder - Jolly Green Giant and comedy genius

28-12-11, 11:31 AM	#7
Viney Member Mega Poster Join Date: Jul 2003 Location: In the shadows to the left Posts: 7,700	Re: Throttle Cable help If im honest, and i cant work it out from that photo; there are 2 cables, one that pulls, one that 'pushes' if its the push cable, remove it alltogether. I have only had a single cable on my SV for 8 years or so.(70+k miles) The 2 cables are easy to identify. The pull cable has a little tab on it(To screw it to the bars)(12 in the fische), the push doesnt. The push cable is only there to satisfy the german TUV standards. If the throttle sticks open, hit the kill switch. Last edited by Viney; 28-12-11 at 11:35 AM.

28-12-11, 01:46 PM	#8
hindle8907 Member Mega Poster Join Date: May 2009 Location: Manchester Posts: 1,492	Re: Throttle Cable help Cheers Viney, I have ordered the corect one as you say the pull cable has a tab on it. __________________ 2006-2007 -- Gilera Runner 50 - Sold 2007-2008 -- Hyosung XRX125 - Stolen 2009-2010 -- 05 SV650n - CAT - B 2010-Now -- 00 SV650s & 00 SV650n & GSXR 600 K2
