Broken R6 throttle mod - SV650.org

DarrenSV650S · 18-05-10, 08:36 PM

Anyone had any problems with the R6 throttle mod?

I've had mine on for ages with no problems. But just recently it has been playing up. It's like the cable becomes loose after I use the throttle. Seems to be more when I blip the throttle for a down-change. Then there is LOADS of slack in it, and it's stiff to turn. But if I give the throttle a sharp twist to completely open it, the problem goes away temporarily.

I tried lubing the throttle tube and cables but that didn't make any difference. It's got worse and worse over the last week. Last night it was doing it constantly. So I stuck the standard tube on tonight and it's fine now.

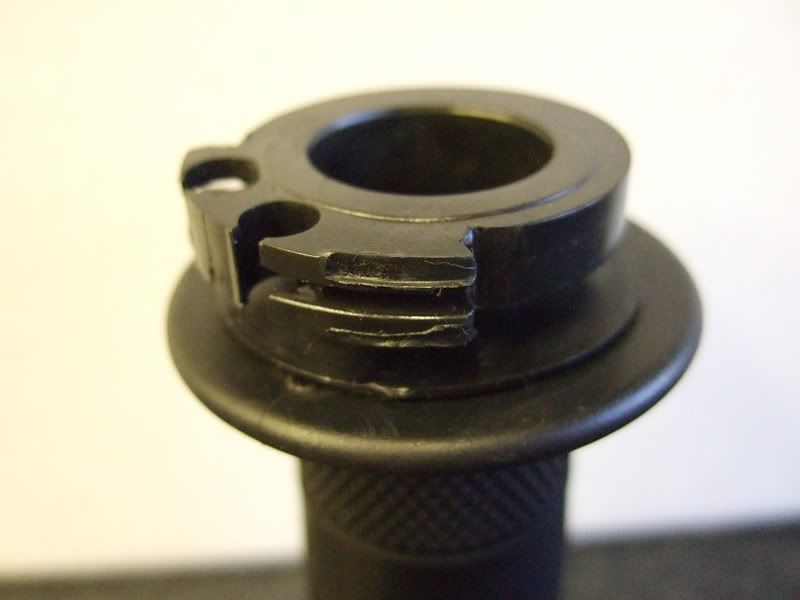

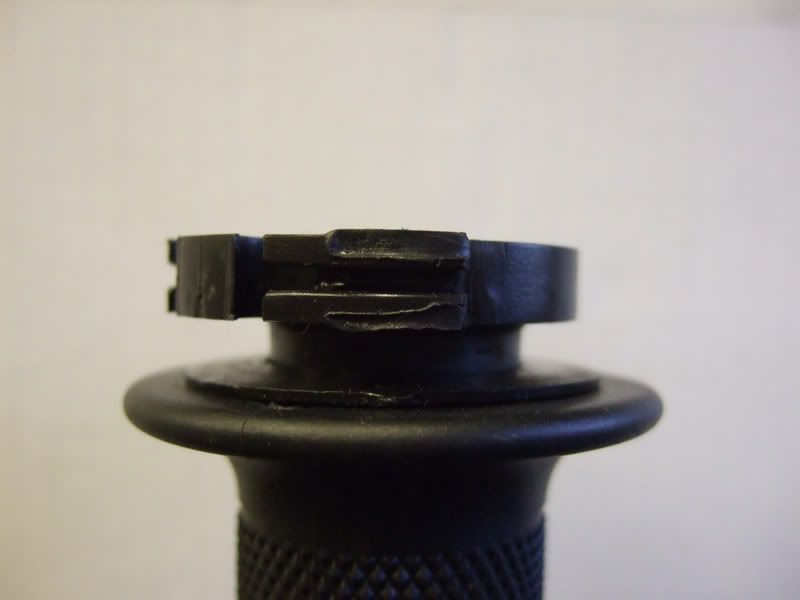

Looking at the tube, there are some grooves on it. Anyone know what could be happening?

18-05-10, 08:42 PM

Does it get stuck when you roll off the throttle? kinda looks like its been forced back too far, do you feel it at all like click into place so to speak?

DarrenSV650S · 18-05-10, 09:01 PM

Quote:

Originally Posted by Holdup

Does it get stuck when you roll off the throttle?

Yeh or if I blip it

Quote:

Originally Posted by Holdup

do you feel it at all like click into place so to speak?

No it doesn't click. I don't notice it happening until I come off the throttle, then open it back up again and it's just loose

19-05-10, 04:30 PM

It is jumping over its stop, common problem with that tube on S model.

DarrenSV650S · 19-05-10, 05:11 PM

Quote:

Originally Posted by zadar

It is jumping over its stop, common problem with that tube on S model.

Is it a common problem with the standard tube? Or just the R6 tube?

19-05-10, 05:28 PM

Quote:

Originally Posted by zadar

It is jumping over its stop, common problem with that tube on S model.

I think thats what i was trying to explain to you last night Darren (badly though...) i forced my old throttle past its stop when fitting different grips and damaged it, then when riding it would go slack if i twist the throttle the other way, but i could feel mine click, i managed to fill mine with some q bond and it worked a treat

19-05-10, 05:37 PM

Which model do you have?I have 1st gen,S model with R6 throttle and works fine.

DarrenSV650S · 19-05-10, 05:48 PM

Quote:

Originally Posted by Holdup

I think thats what i was trying to explain to you last night Darren (badly though...) i forced my old throttle past its stop when fitting different grips and damaged it, then when riding it would go slack if i twist the throttle the other way, but i could feel mine click, i managed to fill mine with some q bond and it worked a treat

You didn't explain anything

Quote:

Originally Posted by TOLAROS

Which model do you have?I have 1st gen,S model with R6 throttle and works fine.

It's a K3S

19-05-10, 07:26 PM

Quote:

Originally Posted by DarrenSV650S

Is it a common problem with the standard tube? Or just the R6 tube?

Just R6 on S model pointy. All others work fine.

DarrenSV650S · 19-05-10, 07:27 PM

Ahh I might just stick with the standard one then. Cheers

18-05-10, 08:36 PM	#1
DarrenSV650S Member Mega Poster Join Date: Jul 2006 Location: Dundee Posts: 4,414	Broken R6 throttle mod Anyone had any problems with the R6 throttle mod? I've had mine on for ages with no problems. But just recently it has been playing up. It's like the cable becomes loose after I use the throttle. Seems to be more when I blip the throttle for a down-change. Then there is LOADS of slack in it, and it's stiff to turn. But if I give the throttle a sharp twist to completely open it, the problem goes away temporarily. I tried lubing the throttle tube and cables but that didn't make any difference. It's got worse and worse over the last week. Last night it was doing it constantly. So I stuck the standard tube on tonight and it's fine now. Looking at the tube, there are some grooves on it. Anyone know what could be happening?

18-05-10, 08:42 PM	#2
Holdup Guest Posts: n/a	Re: Broken R6 throttle mod Does it get stuck when you roll off the throttle? kinda looks like its been forced back too far, do you feel it at all like click into place so to speak?

19-05-10, 04:30 PM	#4
zadar Guest Posts: n/a	Re: Broken R6 throttle mod It is jumping over its stop, common problem with that tube on S model.

19-05-10, 05:37 PM	#7
TOLAROS Guest Posts: n/a	Re: Broken R6 throttle mod Which model do you have?I have 1st gen,S model with R6 throttle and works fine.

19-05-10, 07:27 PM	#10
DarrenSV650S Member Mega Poster Join Date: Jul 2006 Location: Dundee Posts: 4,414	Re: Broken R6 throttle mod Ahh I might just stick with the standard one then. Cheers
