Default SRAD naked conversion help.

Hello just a post for a point in the right direction.

After failing twice to sell my SRAD trackbike I have decided to get it back out on the road.
I have already removed the track fairing and have a mess of wires and the clock hanging loose.

Now I am after a solution to mount the clocks to the top yoke somehow and a mount for my single headlamp. Is there anywhere I can go to buy them?
Has anyone done something similar to their SV? Any hints or tips tht can save me any wasted time?
Also hints of hiding the wiring?

Ta in advance you lovely bunch of coconuts.
__________________
Smokey Black Burnty 02 - Racetech Smoulderlators + .90kg BBQ Springs, zx10r shockingly toasted, Conti Road Attacks heat up very nicely, R&G Crash Bungs but what f**king use are they, No Colour Matched Hugger, Flame Extenda, Beowulf Titainium Oval Flame Thrower.
Mr Speirs is offline   Reply With Quote
Old 09-06-12, 06:40 PM   #2
DarrenSV650S
Member
Mega Poster

DarrenSV650S's Avatar

Join Date: Jul 2006
Location: Dundee
Posts: 4,414
Default Re: SRAD naked conversion help.

I mounted my clocks on a bracket fixed to the ignition barrel bolts. Dunno if that would be possible on your bike?

For the headlight you'll need some fork clamps like these http://www.mandp.co.uk/productinfo/5.../On-Two-Wheels

I hid the wiring under the tank, behind the steering stem.
DarrenSV650S is offline   Reply With Quote
Old 09-06-12, 07:24 PM   #3
andrewsmith
Member
Mega Poster

andrewsmith's Avatar

Join Date: Apr 2010
Location: Newcastle upon Tyne, Just south of salad dodging country
Posts: 7,750
Default Re: SRAD naked conversion help.

Quote:
Originally Posted by DarrenSV650S View Post
I mounted my clocks on a bracket fixed to the ignition barrel bolts. Dunno if that would be possible on your bike?

For the headlight you'll need some fork clamps like these http://www.mandp.co.uk/productinfo/5.../On-Two-Wheels

I hid the wiring under the tank, behind the steering stem.
There should be a mount on a headstock and you can fabricate a mount from Ali to strap the clocks to
__________________
RIP Reeder 20/07/1988 - 21/03/2012. Always missed squire!!!

Every year we meet old friends, gain some new ones, lose old ones and you always remember them all.
“Live as if you were to die tomorrow. Learn as if you were to live forever.” Mahatma Gandhi
andrewsmith is offline   Reply With Quote
Old 09-06-12, 08:04 PM   #4
DarrenSV650S
Member
Mega Poster

DarrenSV650S's Avatar

Join Date: Jul 2006
Location: Dundee
Posts: 4,414
Default Re: SRAD naked conversion help.

Quote:
Originally Posted by andrewsmith View Post
There should be a mount on a headstock and you can fabricate a mount from Ali to strap the clocks to
That could interfere with the cables on full lock
DarrenSV650S is offline   Reply With Quote
Old 09-06-12, 08:07 PM   #5
andrewsmith
Member
Mega Poster

andrewsmith's Avatar

Join Date: Apr 2010
Location: Newcastle upon Tyne, Just south of salad dodging country
Posts: 7,750
Default Re: SRAD naked conversion help.

Quote:
Originally Posted by DarrenSV650S View Post
That could interfere with the cables on full lock
fair point

Chris, you got a photo of the front mate
__________________
RIP Reeder 20/07/1988 - 21/03/2012. Always missed squire!!!

Every year we meet old friends, gain some new ones, lose old ones and you always remember them all.
“Live as if you were to die tomorrow. Learn as if you were to live forever.” Mahatma Gandhi
andrewsmith is offline   Reply With Quote
Old 09-06-12, 08:18 PM   #6
Mr Speirs
Member
Mega Poster

Mr Speirs's Avatar

Join Date: Jul 2008
Location: Northampton
Posts: 2,218
Default Re: SRAD naked conversion help.

Quote:
Originally Posted by DarrenSV650S View Post
I mounted my clocks on a bracket fixed to the ignition barrel bolts. Dunno if that would be possible on your bike?

For the headlight you'll need some fork clamps like these http://www.mandp.co.uk/productinfo/5.../On-Two-Wheels

I hid the wiring under the tank, behind the steering stem.
Where did you get that bracket from? The one for mounting clocks from ignition barrel bolts!! That sounds ideal!!

Checked out the m and p link but my headlight is very small maybe 5" across.

Andrew I'll get some pics up 2moro to give you all a better idea.

Hiding wiring under tank is something I'll have to experiment with. I've got the fuses and a relay to hide and a load of connector blocks too. Still in sure it's possible will try it out 2moro.

Cheers for your help so far.
__________________
Smokey Black Burnty 02 - Racetech Smoulderlators + .90kg BBQ Springs, zx10r shockingly toasted, Conti Road Attacks heat up very nicely, R&G Crash Bungs but what f**king use are they, No Colour Matched Hugger, Flame Extenda, Beowulf Titainium Oval Flame Thrower.
Mr Speirs is offline   Reply With Quote
Old 09-06-12, 08:53 PM   #7
DarrenSV650S
Member
Mega Poster

DarrenSV650S's Avatar

Join Date: Jul 2006
Location: Dundee
Posts: 4,414
Default Re: SRAD naked conversion help.

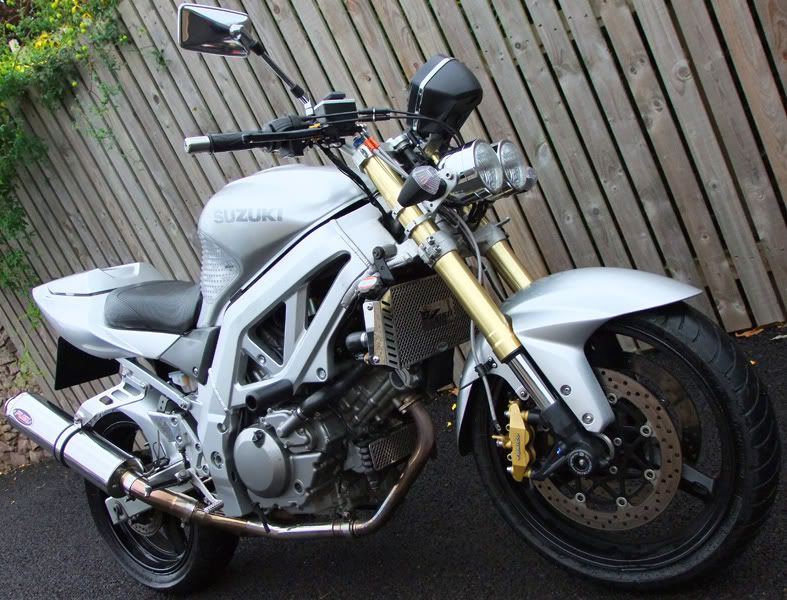

I made the speedo bracket out of aluminium sheet. Think it was 4 or 5mm thick.

Works well with the sv speedo because most of the bracket is hidden by the plastic cover

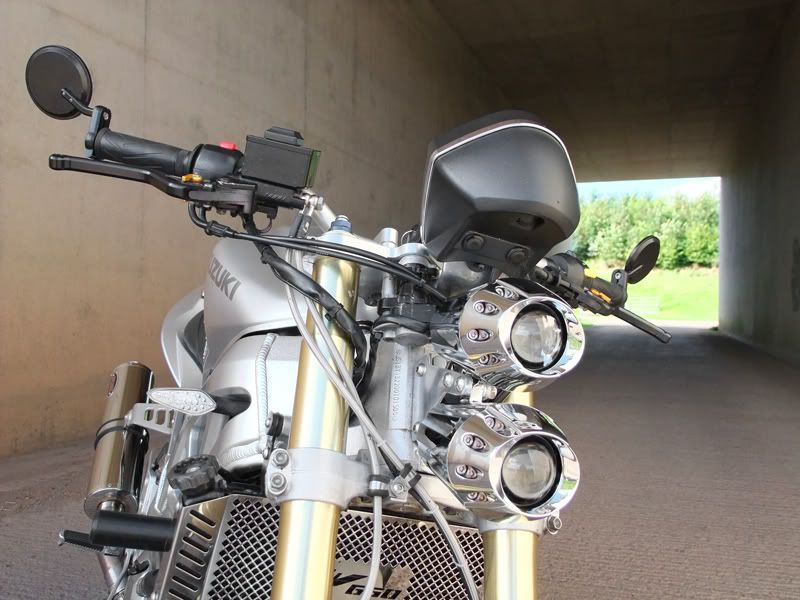

Is it like a dominator light you have then? With my new lights I mounted them to the frame mounts with that alu sheeting.

DarrenSV650S is offline   Reply With Quote
Old 09-06-12, 09:10 PM   #8
rusty76
Guest

Posts: n/a
Default

I think the best thing to do would be to swap those rearsets for some standard pegs

I'll even throw in some textile trousers
  Reply With Quote
Old 09-06-12, 09:19 PM   #9
Mr Speirs
Member
Mega Poster

Mr Speirs's Avatar

Join Date: Jul 2008
Location: Northampton
Posts: 2,218
Default Re: SRAD naked conversion help.

Ha!! Yeah mate.. that would be great!!

You missed a top day a cadwell!! It was ace!!
__________________
Smokey Black Burnty 02 - Racetech Smoulderlators + .90kg BBQ Springs, zx10r shockingly toasted, Conti Road Attacks heat up very nicely, R&G Crash Bungs but what f**king use are they, No Colour Matched Hugger, Flame Extenda, Beowulf Titainium Oval Flame Thrower.
Mr Speirs is offline   Reply With Quote
Old 09-06-12, 09:29 PM   #10
SpikeTM
Guest

Posts: n/a
Default Re: SRAD naked conversion help.

Look for Gizzy on here m8 or pm me your mobile number and i'll phone him for u , he just converted his streetfighter sv back to standard and might sell u his bracket
