Woodruff Key.
Still pondering on my fuelling problem. A long while ago I fitted the 4deg woodruff key. If that has broken, could the timing slip or, does the interference fit on the tapered shaft prevent it from moving?
|
|
|
26-05-08, 08:18 AM
|
#2 |
|
Member
Mega Poster
Join Date: Mar 2004
Location: Not in Yorkshire. (Thank God)
Posts: 4,116
|
Re: Woodruff Key.
In theory a woodruff key is simply a location device and does not have any load bearing responsibility. The taper fit should be all that is required to transmit a drive force. Think of the Morse tapers used for drills, milling machines lathes etc.
That said, I have in the past snapped woodruff keys but always because some cack handed so called mechanic has not tightened up pulleys etc properly.
__________________
Not Grumpy, opinionated. |
|
|
|
26-05-08, 11:12 AM
|
#3 |
|
Noisy Git
Mega Poster
Join Date: Apr 2007
Location: Halifax/Leeds
Posts: 26,645
|
Re: Woodruff Key.
Yes it could snap but only if the actual rotor bolt wasn't tight when the engines been turned over.
As timwilky said it shouldn't be able to move. If it had shifted, I'd expect it to shift so far that it wouldn't run full stop.
__________________
Currently Ex Biker
Now rebuilding a 63' fishing trawler as a dive boat |
|
|
|
|
26-05-08, 01:03 PM
|
#4 |
|
No, I don't lend tools.
Mega Poster
Join Date: Jul 2003
Location: Skunk Works, Nth London
Posts: 8,680
|
Re: Woodruff Key.
If the key was damaged enough to allow the rotor to move relative to the crank then the bolt would have to be loose and the rotor detached from the taper - I'd be surprised if it ran at all.
As Tim rightly says the key is only there to locate the rotor when fitting it - it plays no part in driving the rotor once correctly fitted.
__________________
If an SV650 has a flat tyre in the forest and no-one is there to blow it up, how long will it be 'til someone posts that the reg/rec is duff and the world will end unless a CBR unit is fitted? A little bit of knowledge = a dangerous thing. "a deathless anthem of nuclear-strength romantic angst" |
|
|
|
|
26-05-08, 09:29 PM
|
#5 |
|
Guest
Posts: n/a
|
Re: Woodruff Key.
Thank you gentlemen.
 Just another example of my mechanical ineptitude. Was hoping for an easy fix.
|
|
|
|
26-05-08, 09:55 PM
|
#6 |
|
Guest
Posts: n/a
|
Re: Woodruff Key.
Ok Daz is a DIVVY time
 Whats a woodruff key?
|
|
|
|
26-05-08, 09:58 PM
|
#7 | |
|
Guest
Posts: n/a
|
Re: Woodruff Key.
Quote:
Everybody knows you use it to get into a Woodruff house.
|
|
|
|
|
26-05-08, 10:00 PM
|
#8 |
|
Guest
Posts: n/a
|
Re: Woodruff Key.
thats just what i was thinking but was too shy to ask
|
|
|
|
26-05-08, 10:03 PM
|
#9 |
|
Guest
Posts: n/a
|
Re: Woodruff Key.

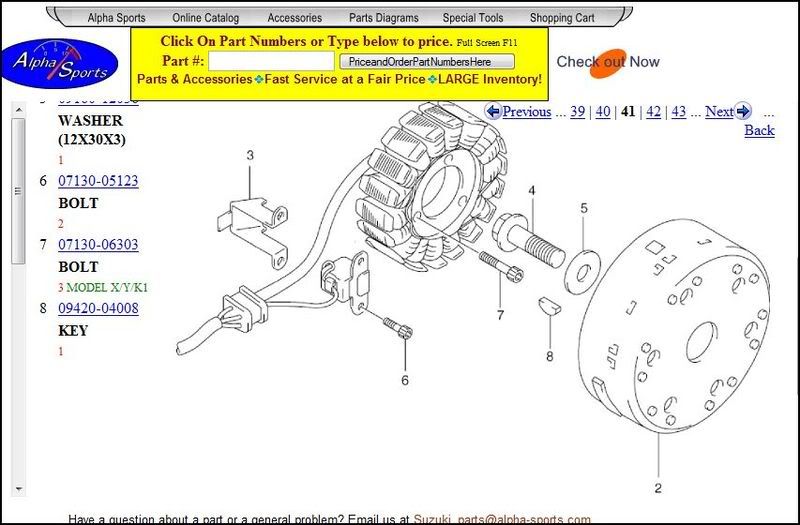

It's a tiny sliver of metal (No 8 in the diagram) that precisely locates the generator to the crankshaft. As I understand it.
|
|
|
|
26-05-08, 10:03 PM
|
#10 |
|
Guest
Posts: n/a
|
Re: Woodruff Key.
fankoooo kind sir!
|
|
|
|
|
|
