Electrical part on carbs?
My curvy sk1 is currenty in bits gettin lots of things done to it and I'm just wondering, why do I hav an electrical connector wired into the side of my carb? Surely theyr all vacuum and cable driven and the choke is cable driven also? Is it likely to b a heating element to aid cold starts or does my k1 hav some sort of
mixture sensor? It's on the rear carb on the brake lever side of the bike, near the cylinder manifold part, small black object held on with a screw at each side, sleeve comes off it to connector lol which splits to yellow, black and blue wires if Im seein these correctly? Any ideas what this is? |
|
|
30-03-10, 01:24 PM
|
#2 |
|
Guest
Posts: n/a
|
Re: What is this???
Far as I can see from here there is not one on the front carb
|
|
|
|
30-03-10, 01:28 PM
|
#3 | |
|
Super Moderator
Mega Poster
Join Date: Dec 2003
Location: Somerset
Posts: 3,614
|
Re: What is this???
Quote:
__________________
Look Dave, I can see you're really upset about this. I honestly think you ought to sit down calmly, take a stress pill, and think things over. K5 GSXR 750 Anniversary Edition |
|
|
|
|
30-03-10, 01:39 PM
|
#4 |
|
Member
Mega Poster
Join Date: Feb 2008
Location: Riding, North
Posts: 2,664
|
Re: What is this???
Throttle Position Sensor lives there.
__________________
Was: K2 naked in rapid yellow  - gone to a better? placeNow: Street Triple R |
|
|
|
|
30-03-10, 01:45 PM
|
#5 | |
|
No, I don't lend tools.
Mega Poster
Join Date: Jul 2003
Location: Skunk Works, Nth London
Posts: 8,680
|
Re: What is this???
Quote:
__________________
If an SV650 has a flat tyre in the forest and no-one is there to blow it up, how long will it be 'til someone posts that the reg/rec is duff and the world will end unless a CBR unit is fitted? A little bit of knowledge = a dangerous thing. "a deathless anthem of nuclear-strength romantic angst" |
|
|
|
|
|
30-03-10, 02:12 PM
|
#6 | |
|
Guest
Posts: n/a
|
Re: What is this???
Quote:
|
|
|
|
|
30-03-10, 03:41 PM
|
#7 |
|
Noisy Git
Mega Poster
Join Date: Apr 2007
Location: Halifax/Leeds
Posts: 26,645
|
Re: Electrical part on carbs?
Just one yes.
It gives more ignition advance under cruise settings to give a little better economy.
__________________
Currently Ex Biker
Now rebuilding a 63' fishing trawler as a dive boat |
|
|
|
|
30-03-10, 04:18 PM
|
#8 |
|
Guest
Posts: n/a
|
Re: Electrical part on carbs?
I did not know that!! That's rather cool! Thanks org (especially y_c with the neverending knowledge :P )
|
|
|
|
31-03-10, 10:15 AM
|
#9 |
|
Guest
Posts: n/a
|
Re: Electrical part on carbs?
each carb bowl has two wires connected,(one has a flat blade connector the other is next to it and has a pin type connector) these are the heaters to prevent icing. The other thing is the TPS as Yorkie_chris says.
Hope this helps. Last edited by BigBaddad; 31-03-10 at 10:18 AM. |
|
|
|
31-03-10, 02:21 PM
|
#10 |
|
Member
Mega Poster
Join Date: Jul 2003
Location: Warwickshire
Posts: 2,804
|
Re: Electrical part on carbs?

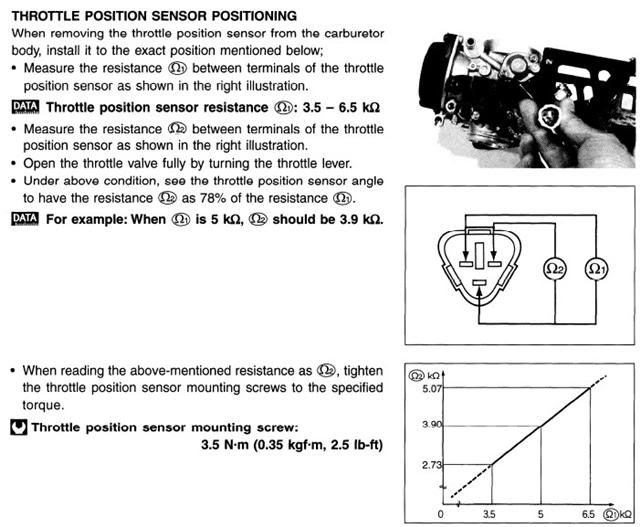

There is a setting procedure for the TPS on the carby model.
You'll find there's not much adjustment on the slots, but get it as near you can, it's not over critical.
__________________
"Artificial Intelligence is no match for natural stupidity" |
|
|
|
|
|
|
