| SV Talk, Tuning & Tweaking Discussion and chat on all topics and technical stuff related to the SV650 and SV1000 Need Help: Try Searching before posting |
 |
|
|
Thread Tools |
27-06-09, 01:26 PM
|
#1 |
|
Guest
Posts: n/a
|
top yoke pinch bolt torque K4?
anyone got the top yoke pinch bolt torque for a sk4 pointy please
|
|
|
27-06-09, 01:57 PM
|
#2 |
|
Trinity
Mega Poster
Join Date: Jun 2006
Location: Guildford
Posts: 8,027
|
Re: top yoke pinch bolts
23 Nm
Anymore you're going to need? or am I going to have to go outto my garage each time?
|
|
|
|
27-06-09, 02:13 PM
|
#3 |
|
Trinity
Mega Poster
Join Date: Jun 2006
Location: Guildford
Posts: 8,027
|
Re: top yoke pinch bolts

|
|
|
|
|
27-06-09, 05:45 PM
|
#4 |
|
Guest
Posts: n/a
|
Re: top yoke pinch bolt torque K4?
lol, cheers m8..i need to buy an haynes..
|
|
|
|
28-06-09, 09:20 AM
|
#5 |
|
Trinity
Mega Poster
Join Date: Jun 2006
Location: Guildford
Posts: 8,027
|
Re: top yoke pinch bolt torque K4?
http://www.sv650.org/sv_manuals.htm

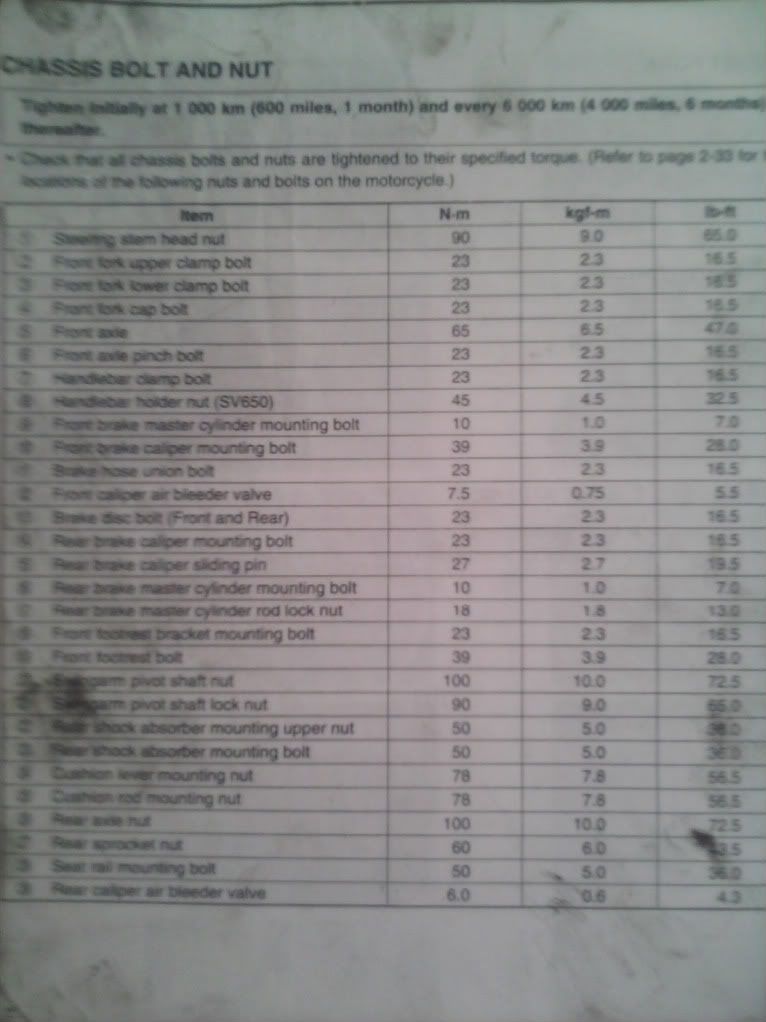

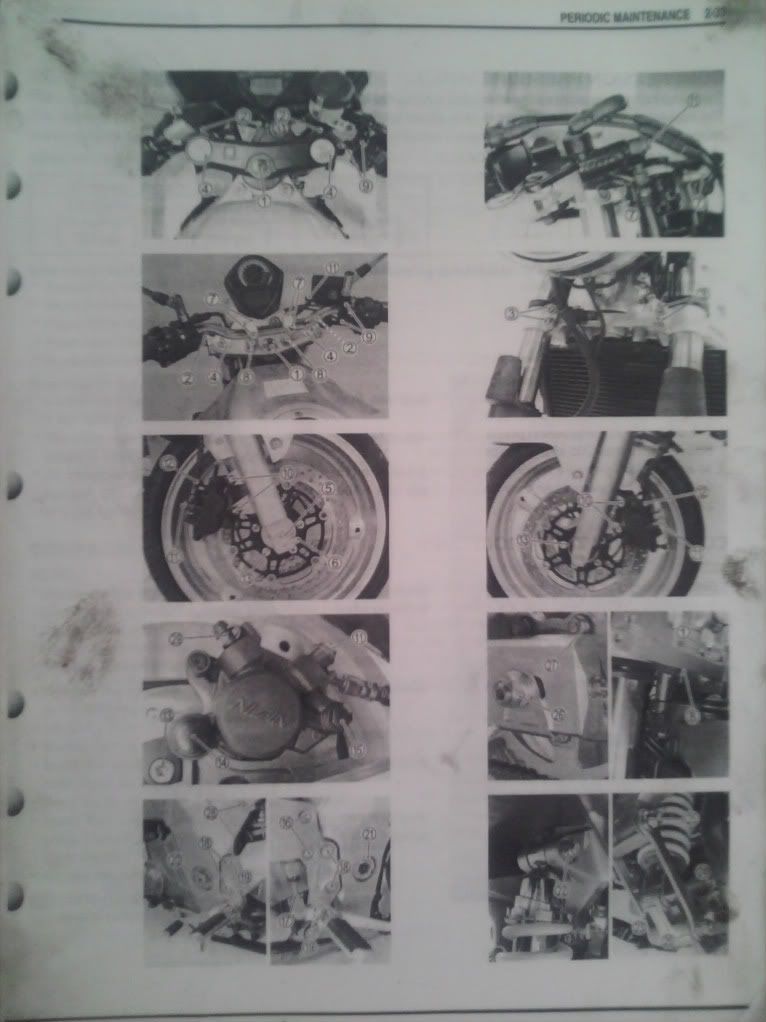

My pictures which are not all in focus , sorry, are from section 2 (2.32) Last edited by Stu; 28-06-09 at 09:24 AM. |
|
|
|
|
|
|
