29-08-09, 07:51 PM

hi all i have a gsxr 750 srad with remote start.
just got a slight problem with it since i installed it the other day. everything works on it apart from the ignition side of things, i press ignition buttom on fob the bike ticks over but no power to lights and the bike doesnt start...could this be due to the fact that there could be a resistor in the ignition switch? if so how do i get by this?
before
http://i197.photobucket.com/albums/a...erz/wiring.jpg

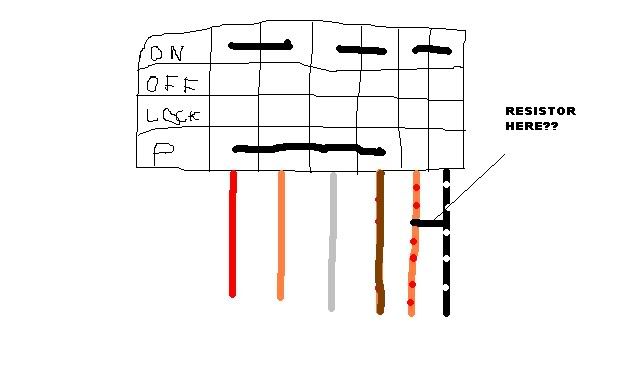

after
http://i197.photobucket.com/albums/a...rz/wiring2.jpg
i think this is how it might be done but not sure... if some one could give me a heads up then that would be great.
thanks

fastdruid · 29-08-09, 10:43 PM

Well there is in the SV so I would have thought the GSXR is the same. Bear in mind that the resister is there to prevent someone from hot-wiring it[1] but yes your diagram is correct.

Druid

[1] And it saved my SV from being stolen.

30-08-09, 12:53 AM

Slightly off topic, but what is the advantage of a remote start? I don't get it?

maviczap · 30-08-09, 07:32 AM

So when you've just robbed a jewler, the bike is running to make a quick and clean getaway

30-08-09, 08:28 AM

ok kl cheers druid.

hindle8907 · 30-08-09, 01:16 PM

its just one of them kool things anit it, to impress people i would love a remote start on my SV . james bond or what .

Spiderman · 30-08-09, 03:42 PM

Not a bad thing in the winter to warm up the bike before you get out on it either. Not that i have it or have ever had it, lol, and i'd imagine its a lot more usefull on a car since the doors stayed locked so no one can drive off in it...but whats to stop em jumping on your bike and riding off???

30-08-09, 04:58 PM

Just so long as the clutch switch isn't bypassed too, otherwise its a remote tipping over device surely?

30-08-09, 05:03 PM

yeah it is bypassed but still wont start in gear with stand down

31-08-09, 02:34 PM

found out that the ecu needs 8-9vs to fire.... + line to switch is 12v but in switch is 100ohm resistor so when switch is on it reduces the 12v to 8 v using resistor... so if i put the resistor from the + line to the ecu line would this then power ecu to tell it to fire?
sorry if its confusing but to me it sounds about right

29-08-09, 07:51 PM	#1
sv650nutter149 Guest Posts: n/a	gsxr remote start hi all i have a gsxr 750 srad with remote start. just got a slight problem with it since i installed it the other day. everything works on it apart from the ignition side of things, i press ignition buttom on fob the bike ticks over but no power to lights and the bike doesnt start...could this be due to the fact that there could be a resistor in the ignition switch? if so how do i get by this? before http://i197.photobucket.com/albums/a...erz/wiring.jpg after http://i197.photobucket.com/albums/a...rz/wiring2.jpg i think this is how it might be done but not sure... if some one could give me a heads up then that would be great. thanks

29-08-09, 10:43 PM	#2
fastdruid Member Mega Poster Join Date: Jul 2003 Location: W Mids Posts: 2,037	Re: gsxr remote start Well there is in the SV so I would have thought the GSXR is the same. Bear in mind that the resister is there to prevent someone from hot-wiring it[1] but yes your diagram is correct. Druid [1] And it saved my SV from being stolen. __________________ '00 SV700S - '94 RVF400R - '97 RVF400R - '88 VFR750F

30-08-09, 12:53 AM	#3
lukemillar Guest Posts: n/a	Re: gsxr remote start Slightly off topic, but what is the advantage of a remote start? I don't get it?

30-08-09, 07:32 AM	#4
maviczap Member Mega Poster Join Date: Mar 2007 Posts: 9,097	Re: gsxr remote start So when you've just robbed a jewler, the bike is running to make a quick and clean getaway __________________ We're riding out tonight to case the promised land Make everyday count RIP Reeder - Jolly Green Giant and comedy genius

30-08-09, 08:28 AM	#5
sv650nutter149 Guest Posts: n/a	Re: gsxr remote start ok kl cheers druid.

30-08-09, 01:16 PM	#6
hindle8907 Member Mega Poster Join Date: May 2009 Location: Manchester Posts: 1,492	Re: gsxr remote start its just one of them kool things anit it, to impress people i would love a remote start on my SV . james bond or what . __________________ 2006-2007 -- Gilera Runner 50 - Sold 2007-2008 -- Hyosung XRX125 - Stolen 2009-2010 -- 05 SV650n - CAT - B 2010-Now -- 00 SV650s & 00 SV650n & GSXR 600 K2

30-08-09, 03:42 PM	#7
Spiderman Where the hell am I? Mega Poster Join Date: Dec 2004 Location: Swingin' thru the urban jungle Posts: 7,451	Re: gsxr remote start Not a bad thing in the winter to warm up the bike before you get out on it either. Not that i have it or have ever had it, lol, and i'd imagine its a lot more usefull on a car since the doors stayed locked so no one can drive off in it...but whats to stop em jumping on your bike and riding off??? __________________ . "Computers are great! Not for communicating tho. They have one fundamental flaw ... they don't have eyebrows." AlpineCarStereo: you win ....... eeerrr ..... ummm ..... my undying support of you, the greatest Mod this forum has ever known. My Leige. davepreston: i bow to your modding godliness. vixis: He's this really cute Persian tea-boy, Im so not giving you his number :P

30-08-09, 04:58 PM	#8
Brettus Guest Posts: n/a	Re: gsxr remote start Just so long as the clutch switch isn't bypassed too, otherwise its a remote tipping over device surely?

30-08-09, 05:03 PM	#9
sv650nutter149 Guest Posts: n/a	Re: gsxr remote start yeah it is bypassed but still wont start in gear with stand down

31-08-09, 02:34 PM	#10
sv650nutter149 Guest Posts: n/a	Re: gsxr remote start found out that the ecu needs 8-9vs to fire.... + line to switch is 12v but in switch is 100ohm resistor so when switch is on it reduces the 12v to 8 v using resistor... so if i put the resistor from the + line to the ecu line would this then power ecu to tell it to fire? sorry if its confusing but to me it sounds about right
