Belly pan fittings?

Forgive me for creating another thread about this, but I have spent a while looking but can't find what I need.

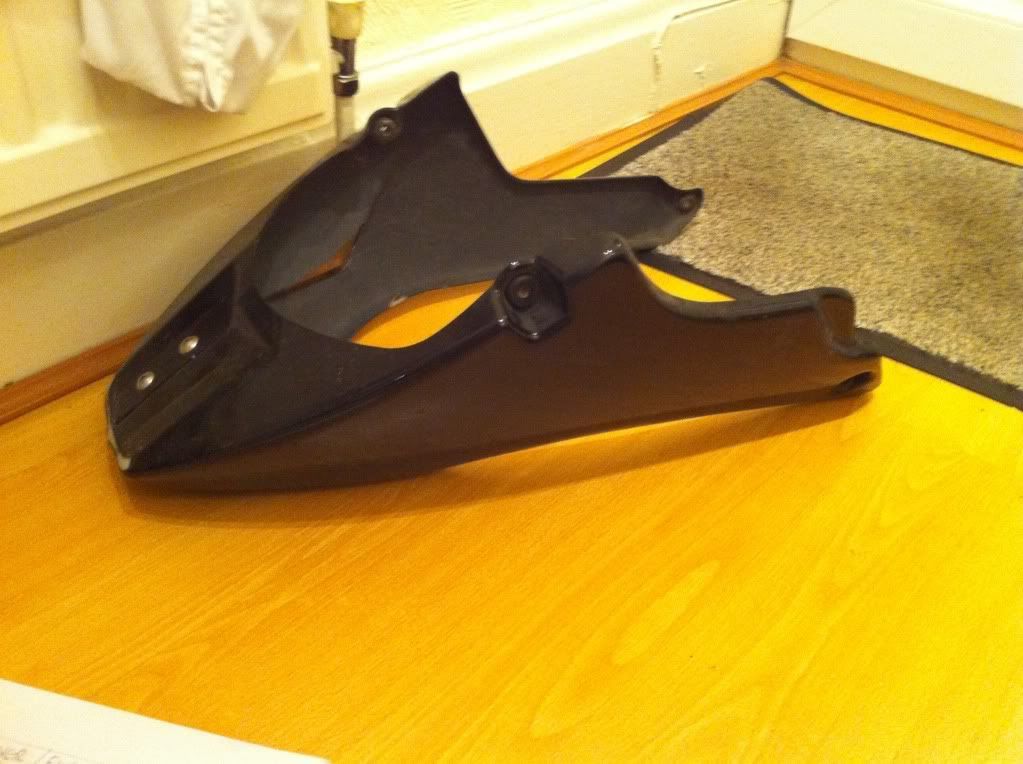

I managed to score a genuine Suzuki belly pan from evil bay but didn't realise that it didn't come with the fitting kit. I see on other threads that its about £85 for the kit which I think is way OTT.

So basically I am looking for the dimensions for the brackets so I can get some made up or obviously if someone has some that they have lying around that'd be fab too. Can anyone point me in the right direction?

Thanks very much!

If I have time this weekend I was planning on removing mine to give the engine a scrub, if I do ill try get some hole centre / general measurements if somebody cant come back with anything before then.

Originally Posted by christian1000

If I have time this weekend I was planning on removing mine to give the engine a scrub, if I do ill try get some hole centre / general measurements if somebody cant come back with anything before then.

That would be fantastic, thanks. I had a nosey at it, but it's not overly obvious where they bolt to.

Do folk reckon aluminium is ok for making up the brackets?

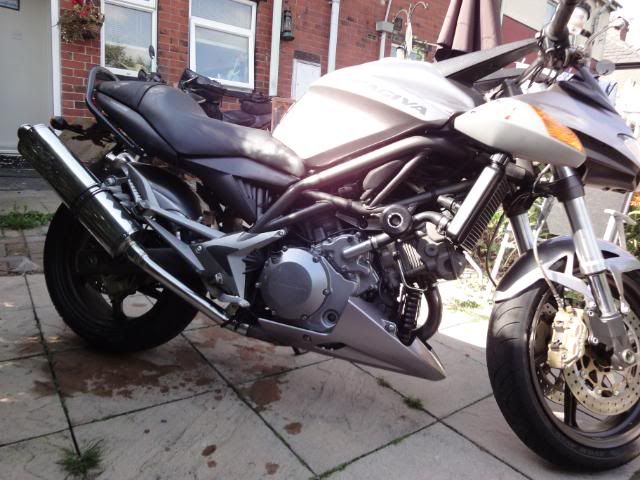

Does anyone even have a photo of one fitted??

I know its a PITA taking things off to get the measurements.

Cheers.

I'm probably bugging everyone but I'm beginning to think that it's for a thou: http://cgi.ebay.co.uk/ws/eBayISAPI.d...#ht_483wt_1206

Can anyone help?

Thanks.

Looks like a 1000

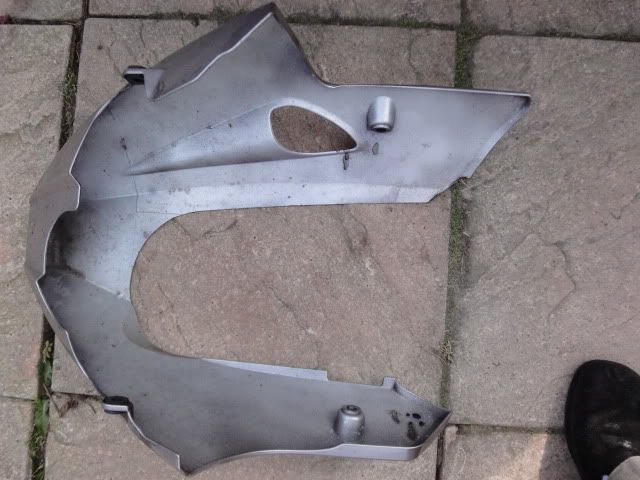

This is a 650 one

[dizzyblonde]

That ebay one defo fits an SV1000, or indeed a VRaptor 1000

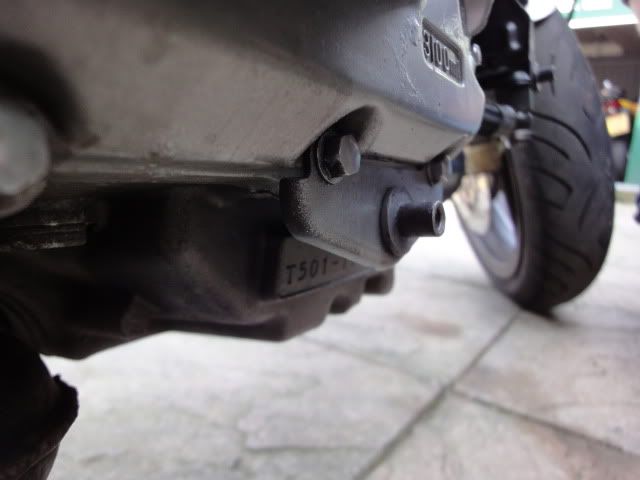

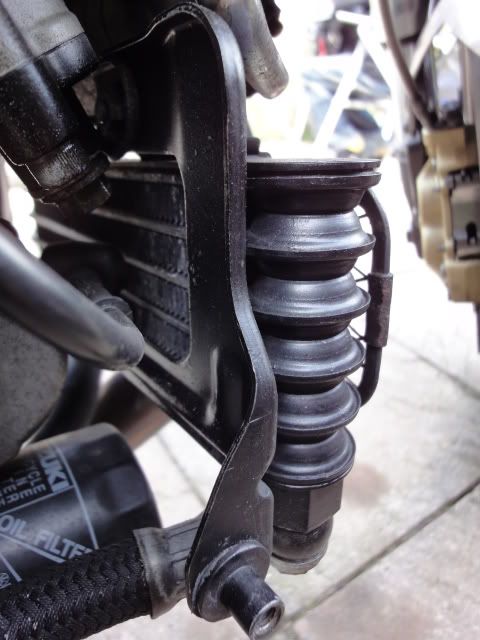

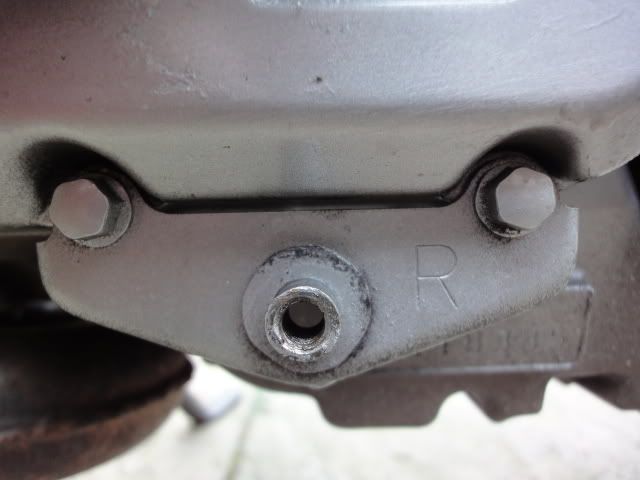

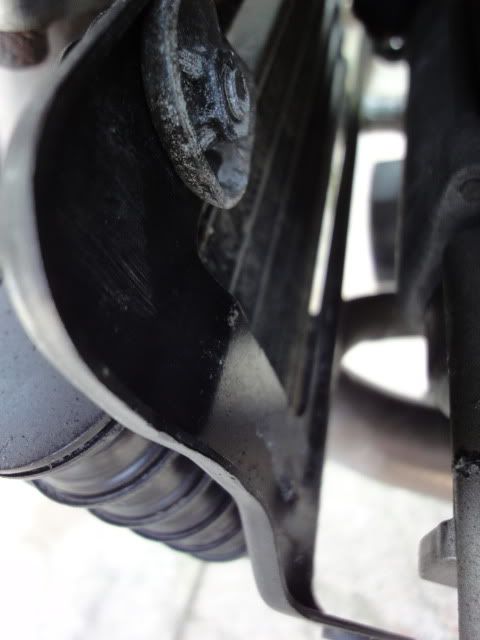

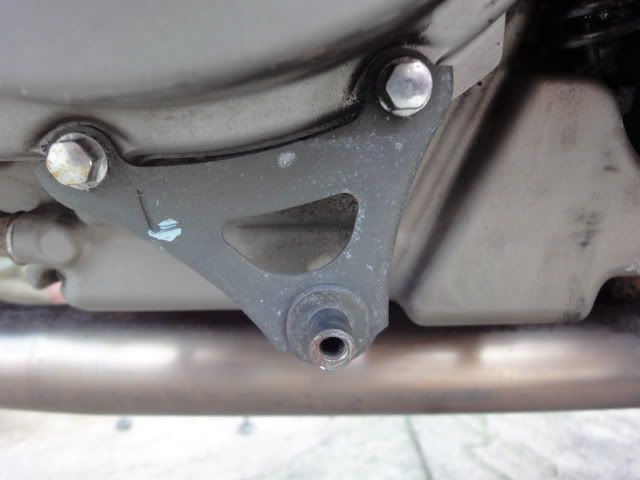

Fitting kits look something likey this

Thanks for the help folks. I think I might just try to get a refund for it. What a pain, thought I had got a real bargain! lol
