DarrenSV650S · 28-07-12, 10:27 AM

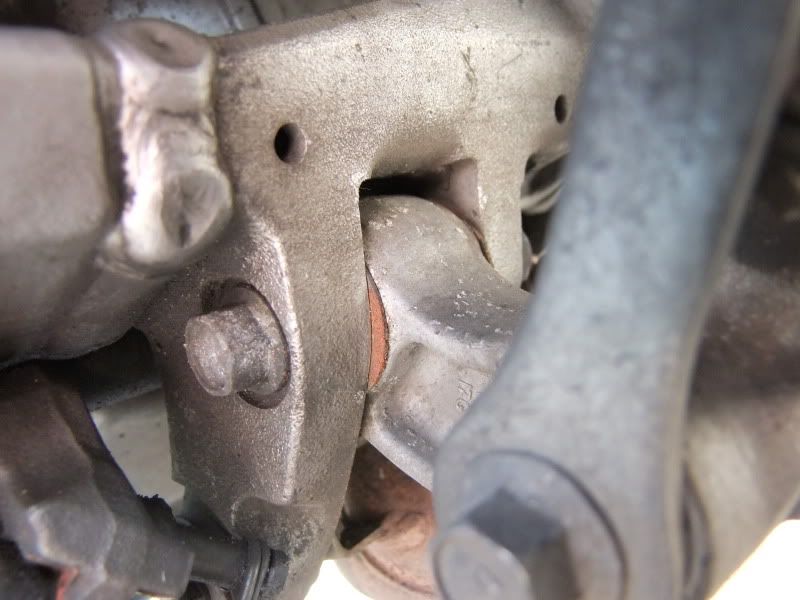

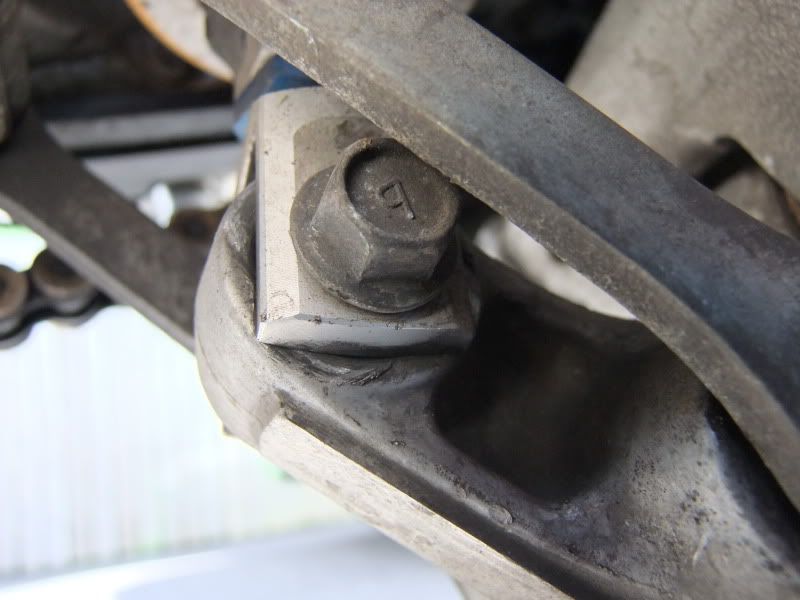

Just something that was picked up at my MOT today. The shock mount seems to be rubbing the link. Would that maybe be caused by fooked bearings?

I might be wrong but I'm sure when I fit the shock I usually have to slide the linkage over slightly to get it to line up. Is that normal?

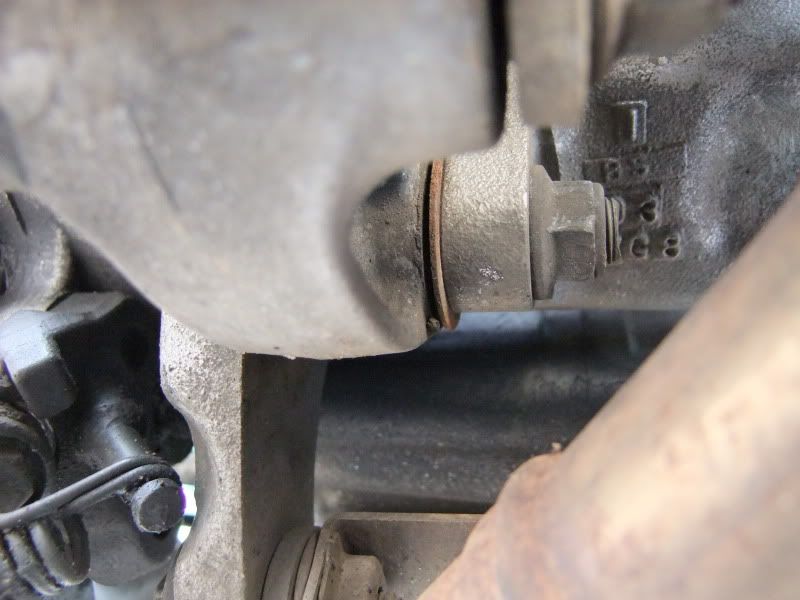

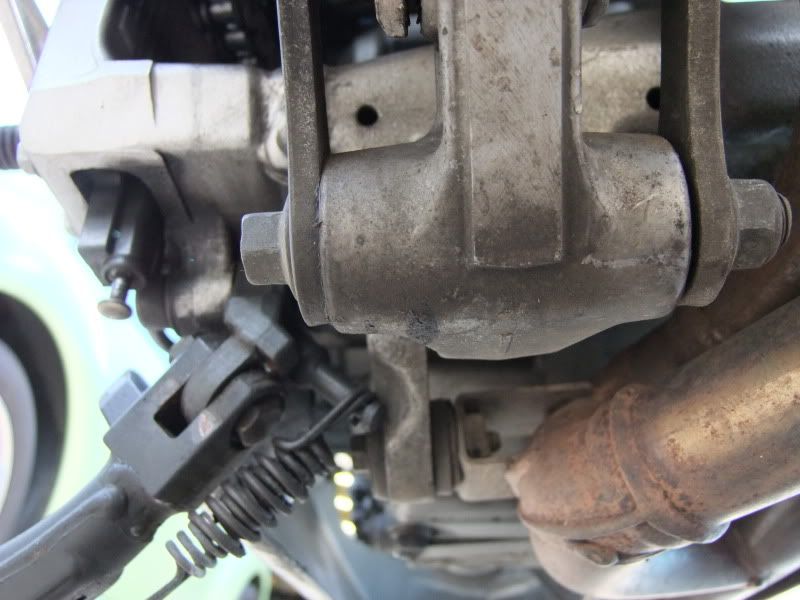

Looking at the other links, nothing is centred. Again I don't know if that is normal

Bibio · 28-07-12, 10:45 AM

they are all like that.

squirrel_hunter · 28-07-12, 11:46 AM

Quote:

Originally Posted by Bibio

they are all like that.

None of mine have mounting bolts rubbing on the dog bones.

What shock is that, it doesn't look standard?

DarrenSV650S · 28-07-12, 11:58 AM

It's an ohlins shock

Bibio · 28-07-12, 12:45 PM

the pointy dogbones/linkages move from side to side.

yorkie_chris · 28-07-12, 01:27 PM

They all have side float.

Try turn bottom of shock round, might make enough difference to stop it.

DarrenSV650S · 28-07-12, 03:21 PM

Ok so the gaps are nothing to worry about. I'm sure I tried turning the bottom of the shock around last time, just because the bolt goes in from the other side in the haynes, but it wouldn't turn. Do I need to slacken off the blue nut?

yorkie_chris · 28-07-12, 03:23 PM

Tension on spring will make it hard but there is nothing in there to stop it.
