Default Can I jack up a bike on the manifold/downpipe or sump?

Got me a front tyre to change but no paddock stand. Is it ok to jack up[ a bike on the sump or manifold carefully?

Alternatively how about using my rear paddock stand with the cups under the bits in green in the picture with the bits in blue to stop it sliding off? (with the steering lock on or with the front forks locked straight)


  Reply With Quote
Old 21-02-08, 12:23 AM   #2
dizzyblonde
Da Cake Boss
Mega Poster

dizzyblonde's Avatar

Join Date: May 2007
Location: On a flying Horse
Posts: 9,992
Default Re: Can I jack up a bike on the manifold/downpipe or sump?

Suzy is sat on axle stands under the engine block, with an Abba stand ont subframe, if thats any help
__________________
Suzy, yellow 2001 SVS. Kitty, V-Raptor 1000, ZZR1400<<its my bike now Pegasus!

Hovis 13.8.75-3.10.09 Reeder 20.7.88-21.3.12
dizzyblonde is offline   Reply With Quote
Old 21-02-08, 12:27 AM   #3
squirrel_hunter
Member
Mega Poster

squirrel_hunter's Avatar

Join Date: Apr 2005
Location: Sunny Swindon
Posts: 3,579
Default Re: Can I jack up a bike on the manifold/downpipe or sump?

I've jacked the SV and my CBR up many times. I wouldn't do it on the pipe, its possible but personally I wouldn't. Under the sump is fine, I use a bit of card to soften and spread the load.
__________________
"A little enthusiastic?"

May I add here, GG is awesome and I think I am in love with Stretchie...he rocks my world!

SH2 | 2MA | GROM | YSR
squirrel_hunter is offline   Reply With Quote
Old 21-02-08, 12:37 AM   #4
Lozzo
Guest

Posts: n/a
Default Re: Can I jack up a bike on the manifold/downpipe or sump?

Rear on paddock stand, trolley jack under the sump with a 6" piece of skirting board to spread the load and not damage anything. I don't jack bikes up on downpipes cos the jack always slips.

Failing that I use Bjorn Again, my Abba stand copy.
  Reply With Quote
Old 21-02-08, 01:23 AM   #5
monkey
Guest

Posts: n/a
Default Re: Can I jack up a bike on the manifold/downpipe or sump?

Quote:
Originally Posted by dizzyblonde View Post
Suzy is sat on axle stands under the engine block, with an Abba stand ont subframe, if thats any help
Haven't got axle stands or an Abba! Thanks anyway.

Quote:
Originally Posted by Lozzo View Post
Rear on paddock stand, trolley jack under the sump with a 6" piece of skirting board to spread the load and not damage anything. I don't jack bikes up on downpipes cos the jack always slips.
Trolley Jack's in Lincolnshire and I haven't even got any wood! What a Loohoohooser eh?

I'll get me some off cuts of wood and the missus down the garage with me to help and Jack it on the sump then I think. I'll try my rear stand method though I think (again with missus ready to catch the bike-He he)
  Reply With Quote
Old 21-02-08, 10:23 AM   #6
Ed
Guest

Posts: n/a
Default Re: Can I jack up a bike on the manifold/downpipe or sump?

The bloke along the road (honestly not me) was using an upturned milk crate. Under the pipes too. Looked OK but hmmmmmm
  Reply With Quote
Old 21-02-08, 11:43 AM   #7
Dicky Ticker
Guest

Posts: n/a
Default Re: Can I jack up a bike on the manifold/downpipe or sump?

Upturned plastic beer crate and a couple of wooden wedges to stead under the sump will get you out of trouble
N.B.Be careful when replacing the speedo drive and do not overtighten the front spindle
  Reply With Quote
Old 21-02-08, 11:50 AM   #8
Baph
Guest

Posts: n/a
Default Re: Can I jack up a bike on the manifold/downpipe or sump?

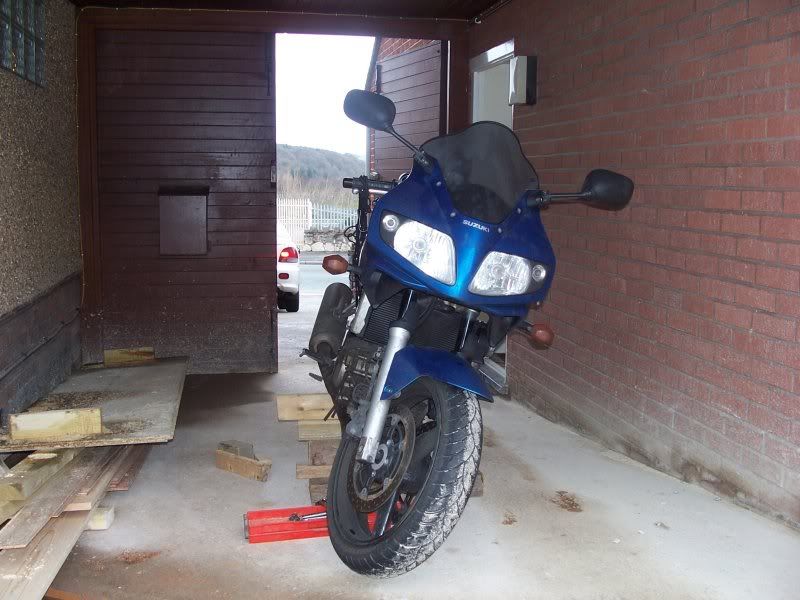

Back before I invested in a paddock stand I used to use various lumps of wood.

Position them next to the sump, put your foot on the side stand, hold the front brake, and rear subframe, lift the rear into the air. With your spare foot kick the wood underneath the sump.

Build it up right, and you can happily get both wheels off the floor. I think I have a picture somewhere...

EDIT:



Now I'm sensible tho, and use the stands.

Last edited by Baph; 21-02-08 at 11:54 AM.
  Reply With Quote
Old 21-02-08, 12:18 PM   #9
Blue_SV650S
Guest

Posts: n/a
Default Re: Can I jack up a bike on the manifold/downpipe or sump?

Quote:
Originally Posted by Baph View Post
....
+1 that is the way to do it for sure ... depending on how far you lean it, what 70% of the load is then on the sidestand, so no change of damaging the engine!!!!

Trying to use an under fork stand will make the wheel change hard as invariably there isn't exactly 50/50 weight distribution, so one leg end up higher than the other at trying to put spindle back in time
  Reply With Quote
Old 21-02-08, 02:30 PM   #10
Sosha
Guest

Posts: n/a
Default Re: Can I jack up a bike on the manifold/downpipe or sump?

And without the rear supported or on a stand could be a tad wobbly...
  Reply With Quote
